    Automatic Identification Color Doppler Ultrasound Scanner With 15 Inch LED Medicinal Monitor Probe

    Ask Lasest Price
    Brand Name : STATEMED
    Model Number : STT-CDU60
    Certification : ISO
    Price : Competitive
    Payment Terms : Western Union, T/T, L/C, D/A, MoneyGram
    Supply Ability : 50 sets per Month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

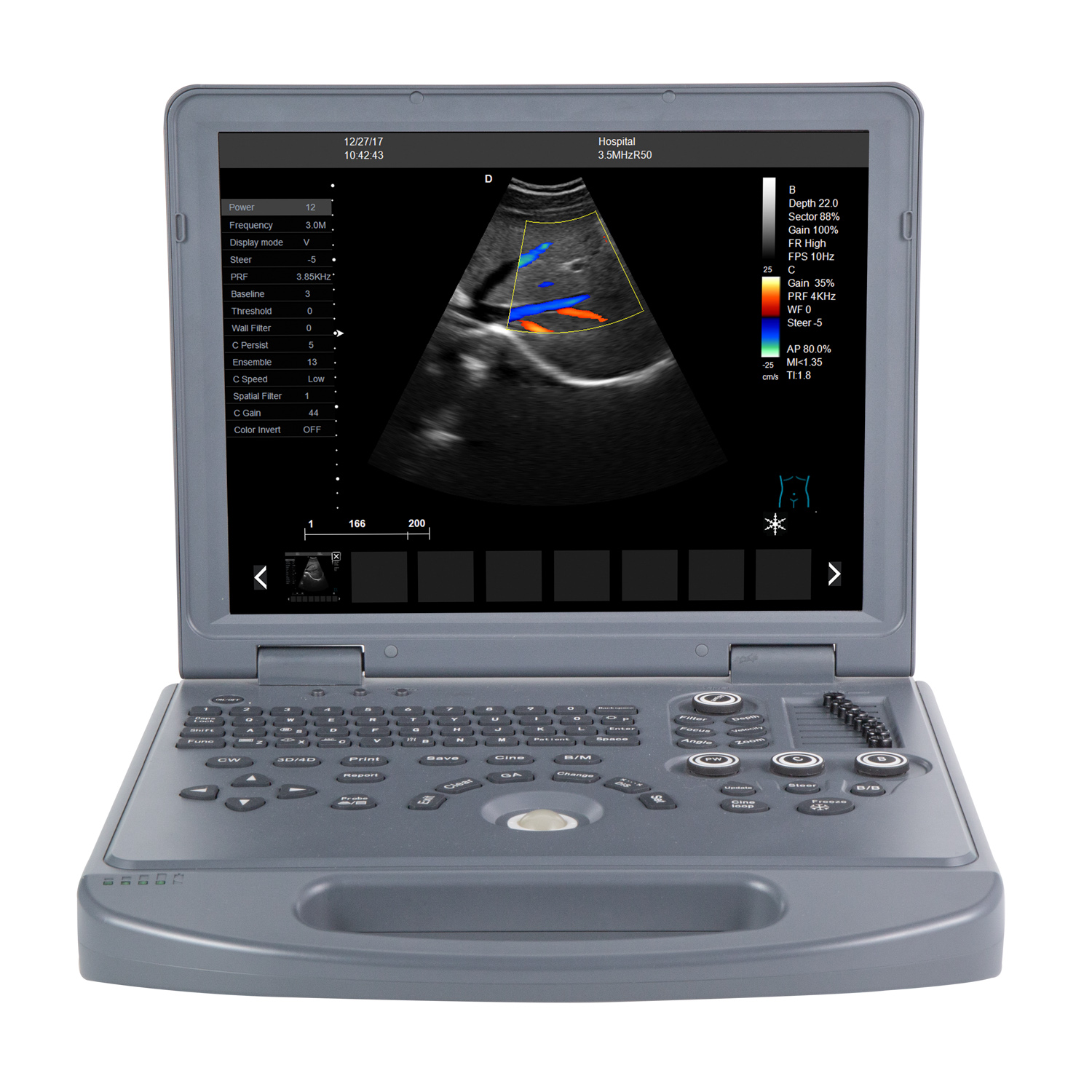

    Automatic Identification Color Doppler Ultrasound Scanner With 15 Inch LED Medicinal Monitor Probe

    Color Doppler Ultrasound Scanner Machine With 15 Inch LED Medicinal Monitor Probe Automatic Identification


    1,Monitor:15 inch LED medicinal monitor
    2,Scanning mode:convex array/linear array/micro-convex array
    3,Probe interface:≥1, single port, probe automatic Identification Support: convex, linear, trans-vaginal, micro-convex, rectal probes etc.
    4,Language: Chinese/English
    5,Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, 3D mode, B/C, B/C/PW, B/PW,B+M,M : 4 scanning speed adjustable
    6,Electronic focus: 4
    7,Body mark: ≥57
    8,Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as per probe)
    Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz
    Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
    Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz
    Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz
    Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
    9,Image processing: up/down,left/right,angle,blood flow reversal.
    10,Magnification: 2-10 times magnification

    Pictures



    UltraClear Imaging technology

    Probes as below:

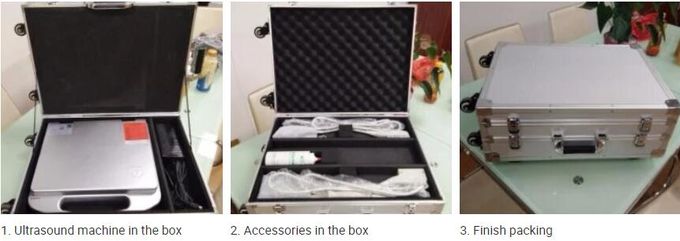

    Packing & Delivery

    Packing Details : Packed double cartons,bound with four plastic belts externally

    Delivery Details : 5-7 days after get the payment information from the bank

    Portable laptop 3D/4D doppler function of the ultrasound machine manufacture price CW function with cardiac probe ultras


    Blind zone:≤4mm

    Max scanning depth: 320mm;

    Geometric accuracy: horizontal≤5%, vertical≤5%

    Resolution: lateral≤2mm, axial≤1mm

    External interface:VIDEO, USB port , HDMI, DICOM 3.0

    Magnification: 16 kinds; disease diagnosis more accurate

    Frame rate:4-1262 fps (adjustable as per requirement)

    Scanning range: 5%--100%

    Image optimization: 6 level adjustable

    Smoothing: 8 level adjustable

    Edge enhancement: 8 level adjustable

    PRF: 16 level adjustable(1.82-29.43KHZ)

    Gray level curve: 16 level adjustable

    Sound power: 15 level adjustable

    Minimum measurement speed≤3.1MM/S,Maximum measurement speed≥4640MM/S

    Sampling width:0.5-48mm

    Net weight:6.3KG;Gross weight:18KG

    Equipment Size:375*350*80mm(Length*Width*Height)


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: 100% in advance T/T,Credit Card,Western Union in advance ,balance before shippment.

    If you have another question, pls feel free to contact us.
