Blood Bank Refrigerator Low Power Consumption 2 - 8 Degree
Temperature Laboratory Pharmacy Refrigerator
Auto Defrost, Forced-Air Circulation
Suitable for hospitals, blood banks, epidemic prevention, animal
husbandry areas, pharmaceutical companies and research institutes.
Designed to store pharmaceuticals, medicine, vaccines, biological
materials, testing reagents and laboratory materials.
Product Show:

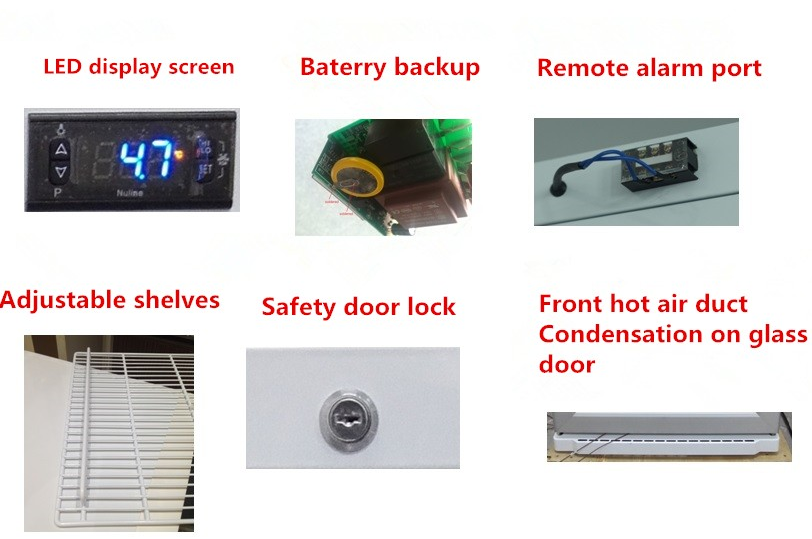

Details Show:
Product Information:
1.Refrigeration System
Highly efficient famous brand compressor and fan;
Forced-Air Circulation for large airflow with special air ducts to
guarantee inner temperature consistency.
Large area of the evaporator design, cooling strong and high
temperature uniformity, While effectively suppressing frost,
reducing defrosting process.
CFC-Free overall situ polyurethane foaming insulation;
CFC-Free refrigerant
2. Temperature Control
Microprocessor control, digital display of inner temperature, the
inner temperature can be adjustable at the range of 2℃~8℃;
Lowest and Highest temperature recorded value record.
Over temperature alarm system, set the alarm temperature as
requirements.
3. Safety Control
Malfunction malfunction alarms: high temperature alarm, low
temperature alarm, Sensor failure, Power failure alarm, Door
jammed, low valtage of backup battery;
Three alarming methods: buzzer alarming, digital flashing alarming
and Remote alarm;
Protection function: power-on delay, time between stops;
4.Ergonomic Design
Safety door lock, preventing unauthorized access;
Wide voltage design from 187V to 242V;
Inner LED lighting and caster design
Maintenance free wire tube condensor;
No condensation glass door;
25mm access port;
Basket can be installed in freezer for the convenience of usage.
Stopper on rear against back wall.
| Model | STT20-PR90 | STT20-PR91 | STT20-PR92 | STT20-PR93 | STT20-PR94 |
| Technical Data | Cabinet Type | Desktop | Under-counter | Under-counter | Vertical | Vertical |
| Climate Class | ST | ST | ST | ST | ST |
| Cooling Type | Forced air cooling |
| Defrost Mode | Auto |
| Refrigerant | CFC-FREE,R134a(R600a is optioanl) |
| Performance | Cooling performance(℃) | 4 | 4 | 4 | 4 | 4 |
| Temperature Range(℃) | 2～8 | 2～8 | 2～8 | 2～8 | 2～8 |
| Control | Controller | Microprocessor |
| Display | LED |
| Material | Interior Material | Galvanized steel powder coating(white) |
| Exterior Material | Galvanized steel powder coating(white) |
| Electrical Data | Power Supply(V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Power(W) | 65 | 80 | 80 | 135 | 135 |
| Dimensions | Capacity(L) | 60 | 110 | 136 | 260 | 386 |
| Net/Gross Weight(approx) | 40/45 (kg) | 50/58 (kg) | 55/65 (kg) | 75/85 (kg) | 110/125 (kg) |
| Interior Dimensions(W*D*H) | 426×388×435(mm) | 516×388×585 (mm) | 516×470×660 (mm) | 516×418×1290 (mm) | 516×470×1640 (mm) |
| Exterior Dimensions(W*D*H) | 510×531×655(mm) | 600×531×805 (mm) | 600×583×880 (mm) | 600×563×1510(mm) | 600×583×1860 (mm) |
| Packing Dimensions(W*D*H) | 570×585×760 (mm) | 660×590×910 (mm) | 660×640×990 (mm) | 660×620×1620 (mm) | 660×640×1970 (mm) |
| Container load (20'/40'/40'H) | 160/252/336 | 72/144/216 | 54/114/114 | 27/57/57 | 27/57/57 |
| Functions | High/Low Temperature | Y | Y | Y | Y | Y |
| High/Low Temperature Recorder | Y | Y | Y | Y | Y |
| Remote Alarm | Y | Y | Y | Y | Y |
| Power Failure | Y | Y | Y | Y | Y |
| Low Battery | Y | Y | Y | Y | Y |
| Door Ajar | Y | Y | Y | Y | Y |
| Lockage | Y | Y | Y | Y | Y |
| Inner LED light | Y | Y | Y | Y | Y |
| Accessories | Caster | N/A | N/A | N/A | Y | Y |
| Foot | Y | Y | Y | N/A | N/A |
| Test Hole | N/A | N/A | N/A | N/A | N/A |
| Shelves/Inner Doors | 2/- | 2/- | 2/- | 4/- | 5/- |
| Foaming Door | optional | optional | optional | optional | optional |
| USB Interface | N/A | N/A | N/A | N/A | N/A |
| Temperature Recorder | optional | optional | optional | optional | optional |
