Marble Desktop ENT Treatment Unit Single Station With Image Processing System

    Buy cheap Marble Desktop ENT Treatment Unit Single Station With Image Processing System from wholesalers

    Buy cheap Marble Desktop ENT Treatment Unit Single Station With Image Processing System from wholesalers
    • Buy cheap Marble Desktop ENT Treatment Unit Single Station With Image Processing System from wholesalers
    • Buy cheap Marble Desktop ENT Treatment Unit Single Station With Image Processing System from wholesalers

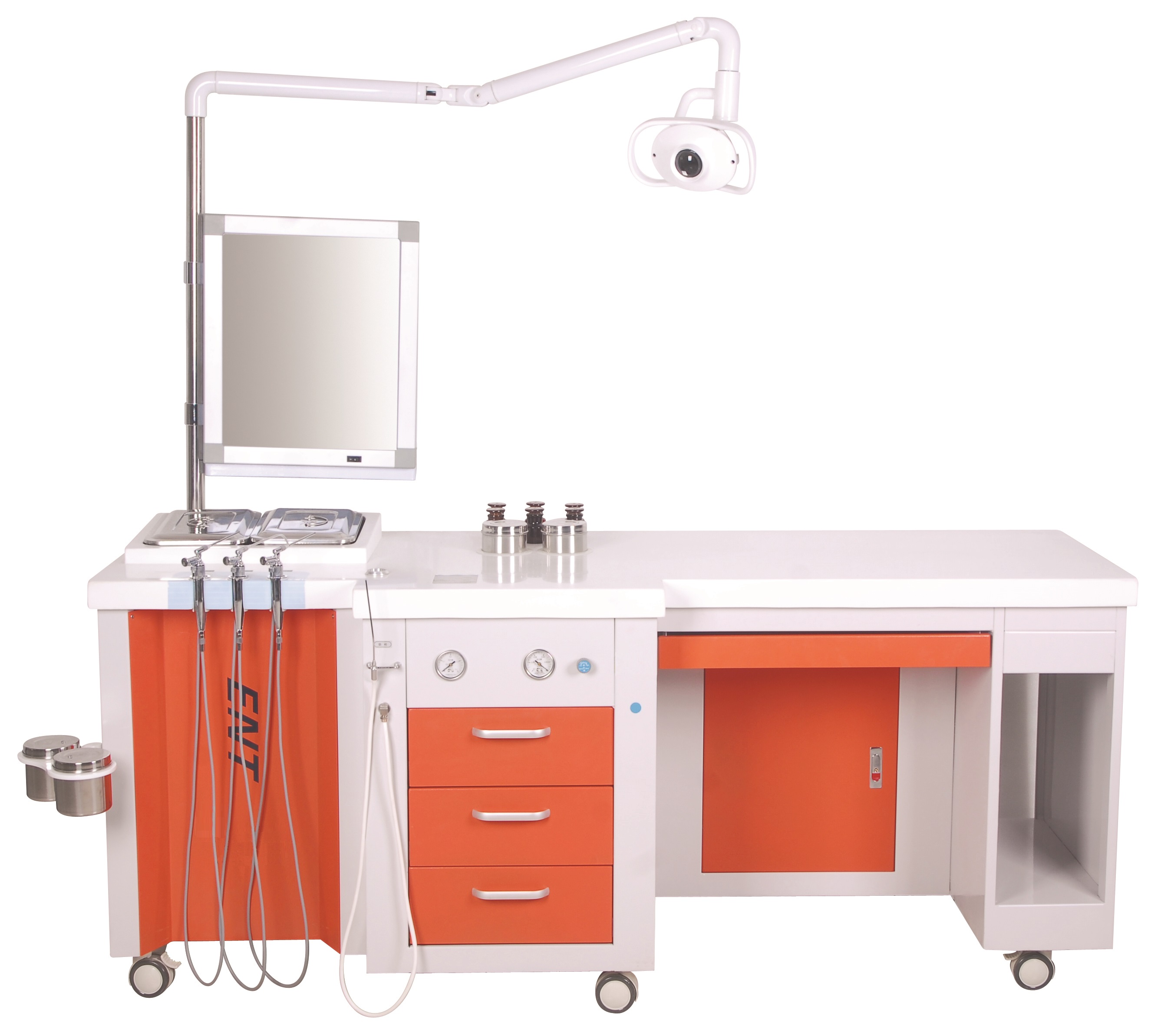

    Marble Desktop ENT Treatment Unit Single Station With Image Processing System

    Ask Lasest Price
    Brand Name : STATEMED
    Model Number : STT9-ETU4, STT9-ETU66
    Certification : CE, ISO
    Price : competitive
    Payment Terms : T/T, Western Union
    Supply Ability : 200 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Marble Desktop ENT Treatment Unit Single Station With Image Processing System

    Hot Sale Blue or Orange Color Marble Desktop ENT Treatment Unit With Image Processing System


    Characteristics

    a. Powerful suction pump and low noise pump block with oil free suction motor.
    b. Exquisite spray tips make pulverization for liquid of medicine,rational design,convenience of detection and long life.
    c. Stable performance of preheating system,setting heating time to off automatically.
    d. Applicable in many ways through ENT chair,computer,endoscope,
    etc.


    Standard Equipment
    Desk top1pc
    Compressor pump1pc
    Suction vacuum pump1pc
    Main suction apparatus1pc
    Larynhoscope preheater1pc(Time is adjustable)
    projection lamp (LED)1pc
    Computer1pc
    Image processing system software1pc
    Printer1pc
    Cold light source (LED)1pc
    Monitor (LED)1pc
    CCD camera1pc
    X-ray viewer1pc(optional LED)
    Endoscope3pcs
    Sprayer3pcs(curved 1pc,straight 2 pcs)
    Suction device1pc
    Tray2pcs(320*220mm)
    Cotton can2pcs(90mm)
    Liquid medicine bottle6pcs
    Drawer3pcs
    Control panel1pc
    Technical Parameter
    Desk topMarble
    Positive pressure2.5kg/cm2 (Optional imported parts)
    Negative pressure740mmHg(max) (Optional imported parts)
    Main suction apparatus2500CC
    Larynhoscope preheater450W(adaptive control system,adjustable time)
    LED projection lamp8 W ; illuminate 1×104
    SprayerPressure: 0.1MPa~0.15MPa (adjustable)
    Suction device≥0.07MPa (adjustable)
    Temperature10℃~35℃
    Voltage220V
    Frequency50/60HZ
    Cold light source (LED)60W
    Dimension
    1935mm*710mm*855mm
    Optional:
    Endoscope
    Endoscope imaging system
    Imaging management system
    ENT operating chair
    Doctor chair
    Cold light source
    Camera
    Image sensorSONY SUPER HAD CCD
    Pixel outputPAL:795(H)*598(V)
    Horizontal definition700 line
    Scanning SystemPAL:752 lines,50fied/sec
    White balanceAutomatic/manual lock white balance
    Synchronous systeminternal synchronization
    Video outputCVBS*2
    Gamma correction0.45
    Signal-noise ration55dB
    White balance range200—15000‘K
    Electronic shutter1/50—1/100000(second consecutive)
    CameraIPX7 level (waterproof,can be
    Soak disinfection)
    Cold light source
    Colour temperature3000K--7000K
    Illuminate1400000lux
    Luminous Flux Output1800Lm
    Noise55dB(A)
    Color rendering index90
    Powder/voltageAC100-240V 50/60Hz
    LED power60W
    Effective optical power100mW
    Temperature5℃~40℃
    Spectral range400-700nm
    Light transmitting bundle4mm*250mm F20
    Monitor
    Size19"
    Proportion4:05
    Resolution ratio1280×1024
    Chroma16.7M
    Contrast58 33/100
    Visual angle178/178
    The response time5ms
    Distance0.294mm*0.294mm
