Ground-based Digital High Frequency X-ray Radiography System for Medical STT-F50DR

High Frequency Generator

1 Functions: Digital x-ray radigography, x-ray filter radiography, buck stand radiography, ARP and AEC.

2 Nominal electric power: 50 kW

3 Tube volate: 40kV~150kV

4 Tube current: 10mA~630mA

5 Time: 2ms~10s

6 mAs: 0.1mAs~630mAs

7 Working frequency: ≥400kHz

8 Control panel: LCD touch screen

X-ray Tube

1 Max. Tube voltage: 150kV

2 Focus:Small focus:0.6mm; Big focus:1.2mm

3 Anode input power: small focus 19kW, big focus 50kW

4 Target angle: 12°

5 Anode RPM:2800rpm

6 Heat capacity: 150kHU

Flat Panel Detector

1 GOS & Csl

2 Size: 35×43cm(14×17 inch)

3 Pixel: 140μm

4 Pixel matrix: 2560×3072

5 A/D conversion: 16Bit

Radiography Table

1 Size: 2100mm×825mm×655mm (LxWxH)

2 Horizontal moving range: ≥250mm;

3 Lengthways moving range: ≥825mm;

4 Table top lock: Electromagnetic lock, braking force≥100N, with pedal switch, flexible and convenient.

5 With electric or manual control of mechanical movement, and there is automatic tracking alignment function with the x-ray tube and the detector.

6 Grid size: ≥15"×18";Grid focus distance: f0=100cm; Grid ratio: r=10 :1;Grid density: N=103Lines/Inch

Tube Column

1 Secure and solid structure

2 Column rotation: ≥±180°

3 Moving range along the table: ≥1575mm, can be locked at any point

4 Tube moving up & down: 930mm±10mm, an be locked at any point

5 Tube rotation: ≥±180°

6 Max. Distance from tube focus to film: ≥1200mm

Bucky Stand

1 Up & Down moving range: ≥1200mm;

2 At max. Height, the distance between the floor and the box center is ≥1500 mm;

3 Grid size: 18×18";Grid focus: f0=180cm;Grid ratio: r=10 :1;Grid density: N=103Lines/Inch

Collimator

Flexible and convenient to operate, and any rectangle radiography field size is available.

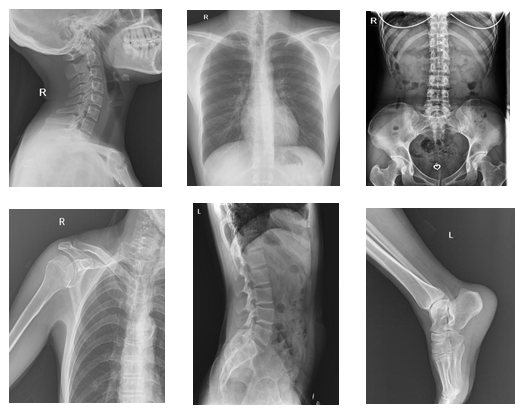

Imaging

Packing List (STT-F50DRA)
