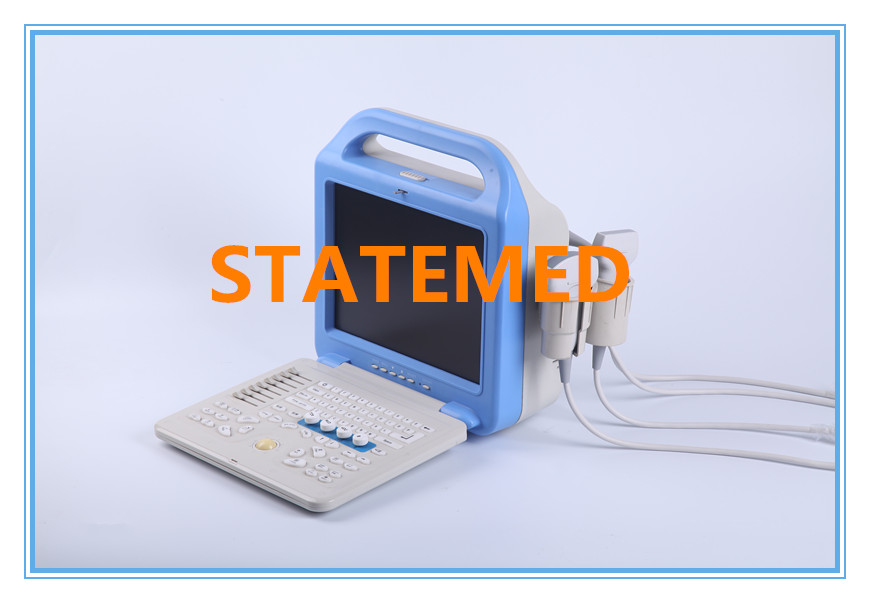

Human Digital Laptop Diagnostic Ultrasound Equipment Portable
Ultrasound Scanner
Main Features:
Powerful measurement & calculation software packages
8-Segment TGC ABD Trackball adjustment
12 inch LCD monitor
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification
Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under
B mode), up to 5 times (area); local amplification function which
can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%;
blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm
Gamma: 4 gray scale γ transform function;
Variety of focus selection and multi-stage dynamic focusing with 4
transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, Pal-D and VGA video output, can
connect external screen monitors, color monitors, VCRs, video image
printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer
directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video connector;
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;
Standard configuration:
12 inches LCD main unit;
2.5-7.5MHZ Convex array probe;
two probe sockets;
USB,VGA,video,printer ports;
Options:
Linear array probe;
Micro-Convex array probe;
Trans-vaginal array probe;
Trans-rectal probe;
Mitisubishi Video Printer;
Inside battery
Characteristic
The high resolution Ultrasonic Diagnosis Equipment, controlled by
computer and equipped with digital screening converter (DSC), is
characterized by its clear image, stable performance and high
resolution with adopting variable aperture, multi-segment dynamic
focus, large dynamic band low-noise pre-amplifier, logarithmic
compression, TGC control, dynamic filter, edge enhancement and
frame-related technologies etc.
Classifications
a) The scanning modes of ultrasound are electron convex array and
electron liner array.
b) The Ultrasonic Diagnosis Equipment is a Laptop one in accordance
with its structure.
Components of structure
The instrument is consist of mainframe, probe and monitor,. It can
be connected with medical image work station, printer, and color
monitor. The scanning modes are electron convex array and electron
liner array. The main probe is 3.5MHz(R=60) Electronic Convex Array
Probe, the optional probe are 6.5 transvaginal probe and7.5 MHz
high frequency linear array probe.
Operation functions of Equipment
● Four display format: B,B+B,4B,B+M,M; Image grey scale: 256 levels
● Freezing, real time, selective enlargement, upwards/downwards and
left/right turnover of the image can be realized
● 8 stage TGC adjustment.
● 18 types of body mark
● Soft reset function
● Full-screen character annotation
● Fixed character, real time clock and calendar
● Electron focusing, free combination of focus
● Various probe for choice, enough to meet requirement of clinical
diagnosis
● Frequency Conversion: 2.0MHz – 8.0 MHz
● Image magnification: ×1.0,×1.2,×1.5,×2.0. the utmost detective
depth is 240mm
● Measuring: distance, perimeter, area, volume, pregnant weeks etc.
heart rate and slope can be measured under M mode
● Built-in DSTN Processor, PAL-D and VGA video transmission,
external screen monitor, colorful screen, video tape recorder,
video image printer etc.
● Movie replay function, uninterrupted replay or step
forward/backward replay for 256 images can be realized.
● Having the function of “flash in “,“flash out”,“dram in ”,“dram
out”and “USB”
● With the optional function of 4 segments frame correlation
