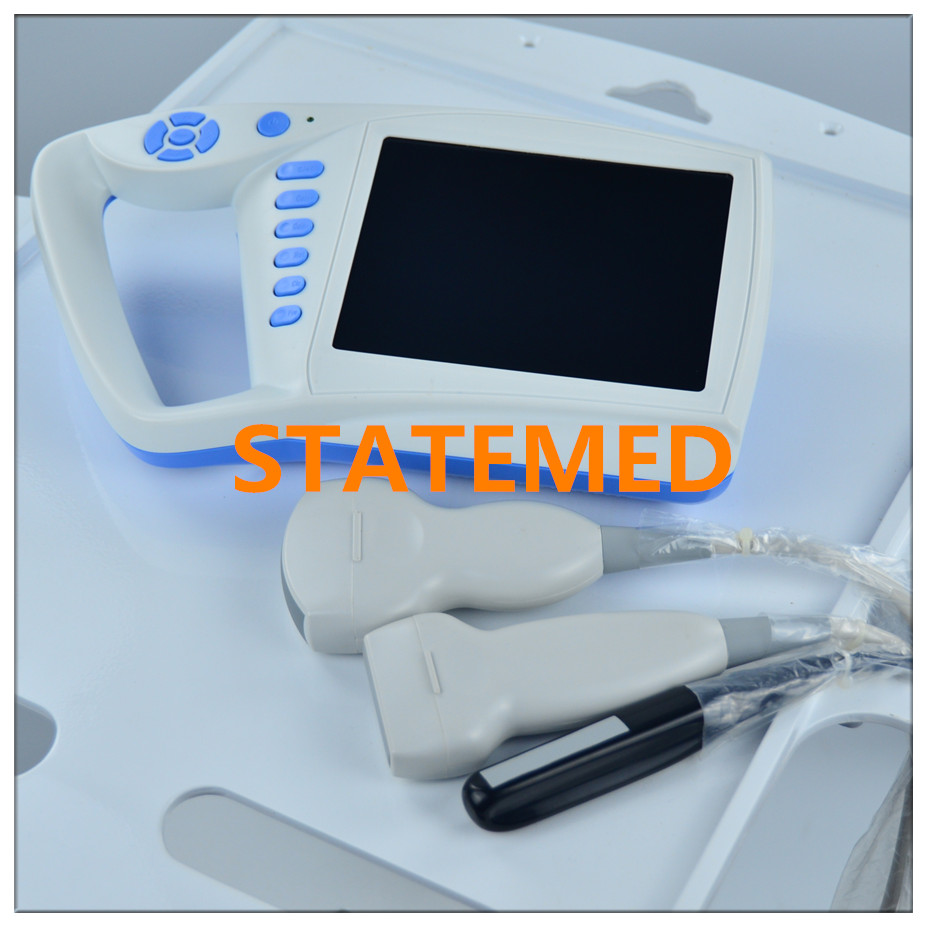

Medical Full Digital Palm Ultrasound System Portable Ultrasound Scanner

Description:

Main Features:

Full digital beam forming technology

Generate Report

Human and Veterinary double system(depend on your needs)

7 inch TFT LCD

A/DC and LI-battery operated

Light and compact design, simple to use

High quality keyboard and clear image

USB 2.0 for real-time picture uploading to PC

Probe automatic identification

Net weight: 1.2 Kgs

Dimension: 320×170×65mm

Main Technical Specification:

· Scanning Method: Convex, Micro-convex, Linear,Transvagional

· Frequency for Convex : 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0

· Display Mode: B, B+B, B+M, M, 4B

· Gray Scale: 256 levels

· Gamma: 4

· Monitor: 7 inch LCD

· Operation interface: English/Chinese switchable

· Scanning Deepth : 180mm

· Image magnification: *1.0, *1.2,*1.3 *1.5,*1.6, *1.8, *2.0 times

· Image control: left/right, black/white, up/down

· General Measurement: Distance, Circumference/Area, Volume, Heart Rate

· 512 frames for cine-memory

· Human Body Mark : 15 kinds

· 4 focusing combination selectable

· Characteristic showing in real-time clock, ID, Sex, Age, Hospital name, Focusing Info and Gain (Near, Far, Overall) info.

· 8 Segments of TGC adjustment, full gain control

· Puncture function is available under B mode.

· Generate HistoG

Human Measurement:

OB : CRL
GS
BPD-FW
FL-FW
AC-FW
HC-FW
APTD-FW
APD-FW

Standard configuration:

Main unit

Convex array probe

Li-battery

USB

Options:

Linear array probe

Micro-Convex array probe

Trans-vaginal array probe

Video Printer
