Pregnancy Portable Ultrasound Scanner With High Definition Image

This ultrasound is full touch screen which is more convenient for operation, and also the image is superior.

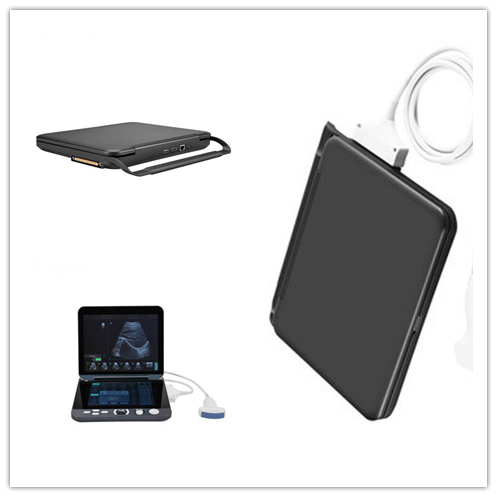

^{Product show}

Parameters

General information

Ergonomic appearance

12-inch led monitor

Visual Angle:

Left and right side: 170°

Up and down: 180°

Resolution: 1024*768

Touch screen sontrol panel

One active probe connectors

Built-in lithium battery

Working hour: about 2.5 hours

Probe

Transducer Types

Electronic convex probe

Electronic micro convex probe

Electronic linear probe - Abdomen, Urology, Gynecology,

Electronic trans vaginal probe

Applications

Abdomen, Urology, Gynecology,

Obstetrics ,Multinational

Thyroid, Breast, Testes, Peripheral

Display mode

B, 2B, 4B mode

M, B/M mode

Zoom B mode

Compound imaging

Trapezoid imaging

Multiple Beam Formation

Lines Density: Low, Medium, Standard High

Focus

Continuous dynamic focus

1~6 selectable transmit focus

Multiple focus number available - Distance

Dynamic range 0~80 adjustable

Memory

Cine-memory - Line Ratio

B-mode (max.1024 frames)

M-mode (max.1024 frames)

Hard disk 32GB SSD

Imaging Processing Calculation

2D mode Obstetric

8-step TGC slide pots

Gain: 0~100 dB

Depth: 1~23cm

Frequency: 5 steps

Edge enhancement: 0~4

Dynamic range adjustable: 36~102dB

Angle : 50%~100%

Power: 80%~100%

AQ Sonic: 0~8

E Crystal: 0~8

Lines Density: Low, medium, standard, high

Frame Average: 0~7

Map: 1~16

Focus position: 1~4

Focus number: 1~5

Palette: 0.50~2.00

Brightness: -100%~+100%

Brightness: -100%~+100%
