38 * 36.9 * 7.9 CM 128 E 6.5 Kg Clinic Portable Ultrasound Scanner
For Baby
Product Description:
Application:Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/SmallParts/Vascular/Pediatrics/Musculoskeleta.
Scanning mode: Convex array,Trans vagina, high-frequency linear array,
Micro-convex;4D array;
Dynamic range: 0~120dB adjustable;

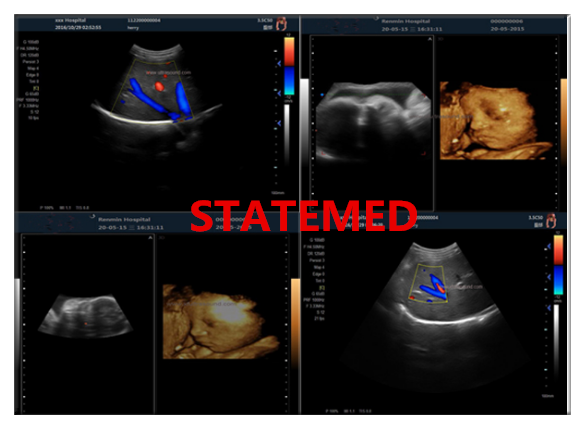

Display mode: B,B/B,M,B/M,CFM,CFM/B,PDI,B/PW, total eight mode; B/D
dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color
processing:16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable;
TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
Image processing:
Edge enhancement: Multilevel adjustable
Frame average: Multilevel adjustable
Line average: Multilevel adjustable
Focus Optimization: Multilevel adjustable
Gray Restrain: Multilevel adjustable
Gamma correction: Multilevel adjustable
Contrast: Adjustable
Brightness: Adjustable
Self-motion optimize function: Built-in multiple check type, according to different in spection
organs, preset best image check condition, reduce the adjusting
operation keys;
One-click optimization function: preset several parameters adjusting focus on a Key, a key to
realize image fast optimization;
Measurement and calculation: B mode routine measurement:Distance, circumference, area, volume,
angle, ratio, and stenos rate.M mode routine measurement: Heart
rate, time, distance, speed, ratio, etc.
Gynecology measurement: Uterus, cervix, endometrial, ovary,
follicular.
Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI
index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement: Prostate volume, displacement volume, bladder
capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint angle
measurement.
Image storage: Image storage, video storage, cine loop, disk storage
capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image
video output( HDD ,USB,Optional DVD-RW),built-in ultrasound
workstation;
Reporting system: automatic report generation system, and can be full screen
characters in both Chinese and English editor;
Display:15 inch high definition progressive no flicker color medical
monitor
Gray scale:256 levels
Depth display:≥250mm
Dynamic range: 0~120dB adjustable,real-time display
Electrical Power: Voltage:100V~240V
Power:DC19V10A
Frequency:50/60Hz
Equipment size: 369mm(Length)x380mm(Width)x79mm(Height)
Equipment weight: 6.5kg
Operating Temperature:5℃~40℃
Humidity:≤80%
Pressure:700hPa~1060hPa
Storage Temperature:-5°C~40°C
Transducer Ports:1
USB Ports:1
FAQ:
1. Q:What is your MOQ ?
A: We have no MOQ, 1 piece is welcomed as you want.
2. Q:What is the mode of payment ?
A: T/T, Western Union, L/C, Alibaba Trade Assurance Order (VISA,
MasterCard, E-checking, Pay Later, etc). Alibaba Trade Assure Order
could assure for buyer’s benefits.
3. Q:Where is your factory located? How can I visit there?
A: Our company is located in Beijing City of China, really glad to
invite you to come to our office to have a face to face meeting
before we build order.
4. Q: How long is warranty for Ultrasound Scanner?
A: Our warranty is 2 years.
5. Q: Could you print LOGO for items?
A: Sure, I can help you print or sticker LOGO as your request.
6. Q: Any Discount ?
A: We have high cost in both raw material and manufacture to
guarantee the good quality, but it could happen if the quantity is
nice.
7. Q:Do you have CE approved?
A: Yes. All of our Ultrasound Scanner with CE and ISO
certifications. Our best model STT1-CDU166 with FDA certification.
8. Q: Do your products have quality assurance?
A:Yes ,we have more than 16 years experience in making our products
and 7 years exporting overseas market for more than 50 countries.
You can check our good database on Alibaba.com
9. Q: What is your shipment mode ?
1) By courier: We ship goods by UPS/DHL/FEDEX/ TNT/EMS express
takes 3~ 5 days to arrive, which is door to door delivery, you have
no need go out can get your order.
2) By Air: We can also help you ship by air cargo, it takes about
2-7 days to arrive, while you need to go to Air port to take the
goods.
3) By Sea: If goods are large quantity and you need not so urgently
,you can choose by sea to save some freight cost which takes you
about one month to get the goods.
10. Q: If any problems in the process of installation or usage of
ultrasound scanner, what should I do ?
A: Professional Instruction Book and Installation video & Usage
video will be supplied. Experienced engineers help to guide
adjusting ultrasound images.
