CE Approved Single Dual Triple Quad High Brightness X Ray Film Viewer

Brightness adjustable

Technical parameters:

Spcification: 792*488*21

Abservation screen: 712*425

Installation pitch: 757

Luminance(cd/㎡): 4000/6000

Brightness dimmer: 10-100%

Power supply: AC100~240V 50~60Hz

Net Weight: 6.6Kg

Characteristics:

1. Aluminum alloy frame:;decease light decay and color decay; sturdy and durable

2. Ultra-thin, the whole structure thickness is only 21mm

3. High brightness, max rated brightness over 4000cd/㎡, suitable for observing films of different density

4. Clipping instruction; self locking of roller pin and ball bearing

5. Light source: 5630 SMD LED from Germany OSRAM special for chip backlight is used, light efficiency over 100lm/w and use life up to one hundred thousand hours

6. Color temperature: 6500±K500; true white light without dazzling and protect doctor’s eyes

7. Light guide plate is edge-lit backlight; more uniform brightness distribution and uniform degree more than 90%; little light loss

8. Uniform brightness distribution without flickers, dark spaces, and eye strain

9. Control brightness through digital control key, it will shut down automatically with buzzer if no actions in 5 minutes; 0~9 stepless dimming; brightness memory

10. The screen size is same as film, which avoid light interference, even 14*17 film without light leakage

11. LED light bar is welded by automatic chip mounter without lead reflux, which avoid cold solder joint and LED damage because of high temperature during manual welding, and ensure product quality

12. Without mercury, energy-conserving and environment-protective; no temperature difference effect, and can be lighted up one open even if in low temperature.

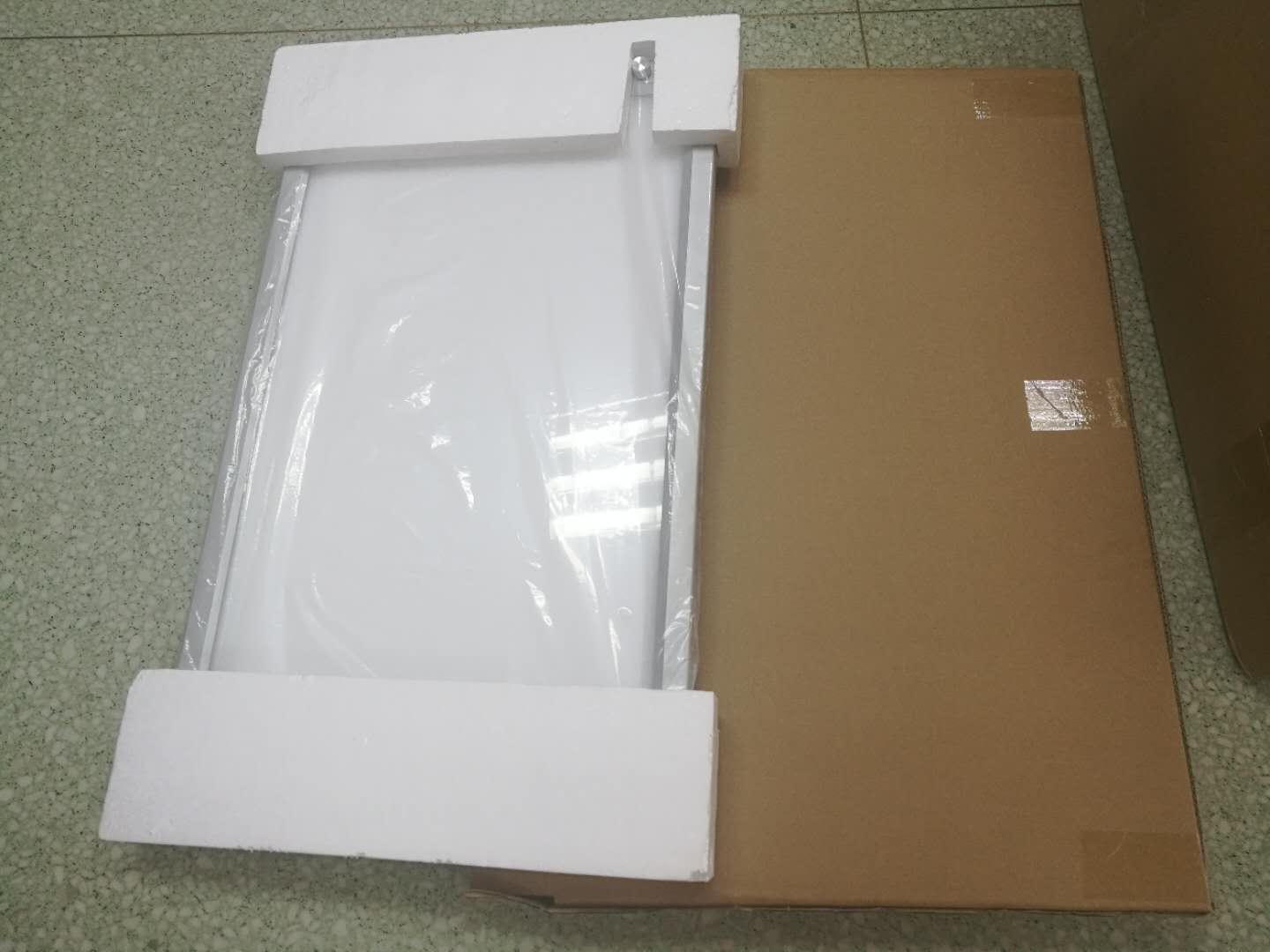

Package:

By export standard carton
