128L ultra low temperature laboratory deep freezer -86 degree

-86 centigrade degree ULT freezer is specially designed for long term storage of various biological products like virus, germs, erythrocytes, leukocytes, sperm, skeleton, skin, and other biological products. It is also widely used for ULT storage of ocean products, electron devices and other special materials.

Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high efficient refrigeration effect;
Specially designed Heat Exchanger, heat transfer high efficient, save Energy;
Single Compressor efficient thermal cycle refrigeration technology, low noise, more energy efficient;
CFC-Free overall polyurethane foaming insulation;
CFC-Free refrigerant.

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy viewing;
The inner temperature can be adjustable at the range of -40℃~-86℃;

Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, over temperature alarm system, set the alarm temperature as requirements;
Two alarming methods: buzzer alarming and digital flashing alarming;
Protection function: power-on delay, time between stops.

Technical Parameters of -86 Degree Cryogenic Chest Freezers

Model		STT-86W128	DW-86W258	DW-86W458
Technical Data	Cabinet Type	Chest	Chest	Chest
	Climate Class	N	N	N
	Cooling Type	Direct cooling	Direct cooling	Direct cooling
	Defrost Mode	Manual	Manual	Manual
	Refrigerant	CFC-Free	CFC-Free	CFC-Free
Performance	Cooling performance(℃)	-86	-86	-86
	Temperature Range(℃)	-40~-86	-40~-86	-40~-86
Control	Controller	Microprocessor
	Display	LED
Material	Interior	stainless steel
	Exterior	Galvanized steel powder coating
Electrical Data	Power Supply(V/Hz)	220/50	220/50	220/50
	Power(W)	450	500	550
Dimensions	Capacity(L)	128	258	458
	Net/Gross Weight(approx)	59/74 (kg)	76/93(kg)	93/110 (kg)
	Interior Dimensions(W*D*H)	640*450*470 (mm)	780×500×600 (mm)	1380×500×660 (mm)
	Exterior Dimensions(W*D*H)	820*690*1030 (mm)	1510×885×1095 (mm)	2110×885×1095 (mm)
	Packing Dimensions(W*D*H)	920*840*1130 (mm)	1600×975×1225 (mm)	2200×975×1225 (mm)
Functions	High/Low Temperature	Y	Y	Y
	Sensor Error	Y	Y	Y
	Lockage	Y	Y	Y
Accessories	Caster	Y	Y	Y
	Foot	N/A	N/A	N/A
	Test Hole	N/A	N/A	N/A
	Baskets/Inner Doors	2/-	2/-	2/-
	Temperature Recorder	Optional	Optional	Optional
	Cryo racks	Optional	Optional	Optional

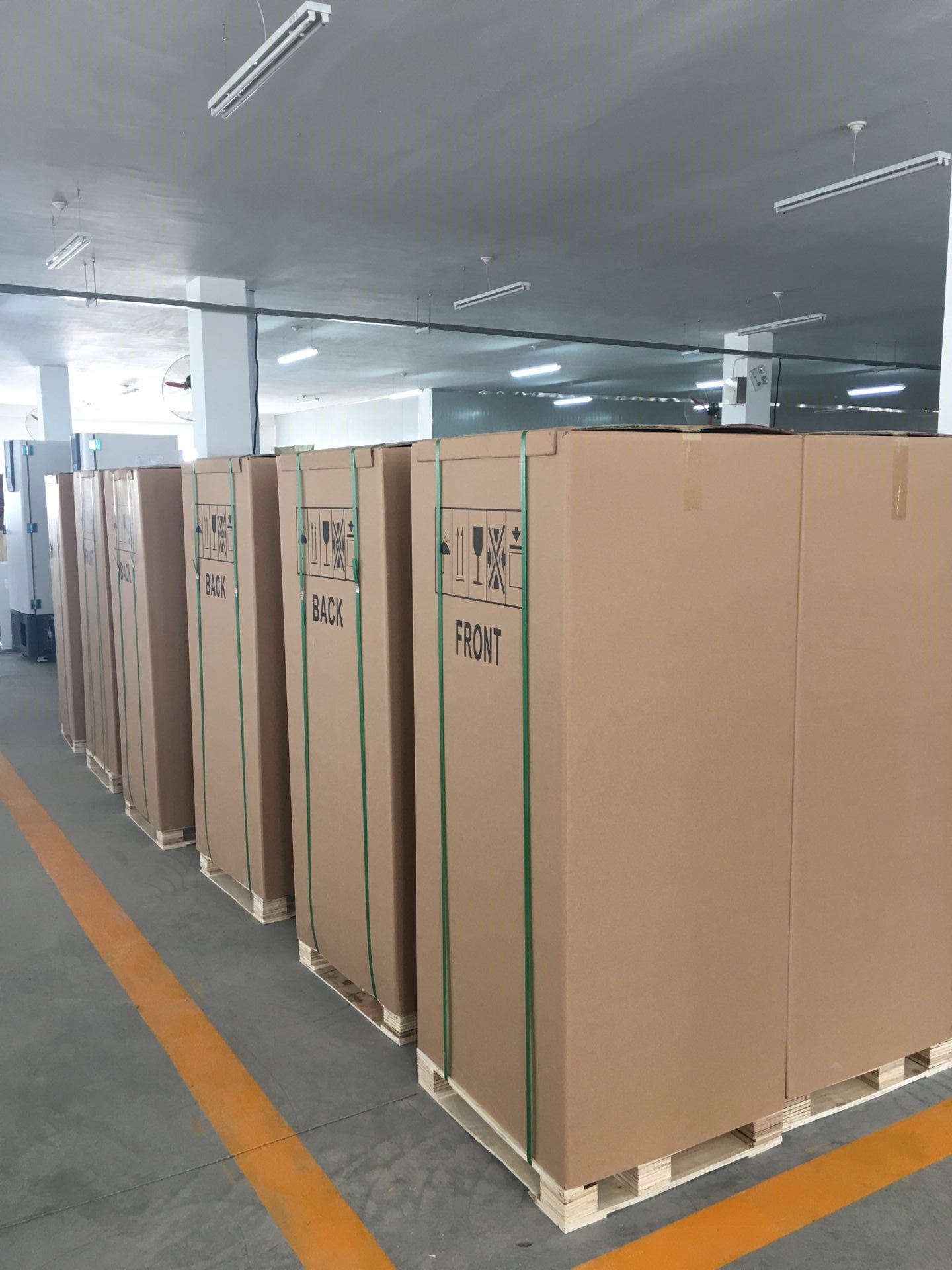

Packing

Standard shock-proof paper carton, with wood pallet for sea shipment.

Wood carton package is available.

Customized package welcomed.

Delivery

For sample orders of deep freezers, we normally deliver by air.

For bulk orders, we normally ship by sea. We will do the shipment as per client's requirements.
