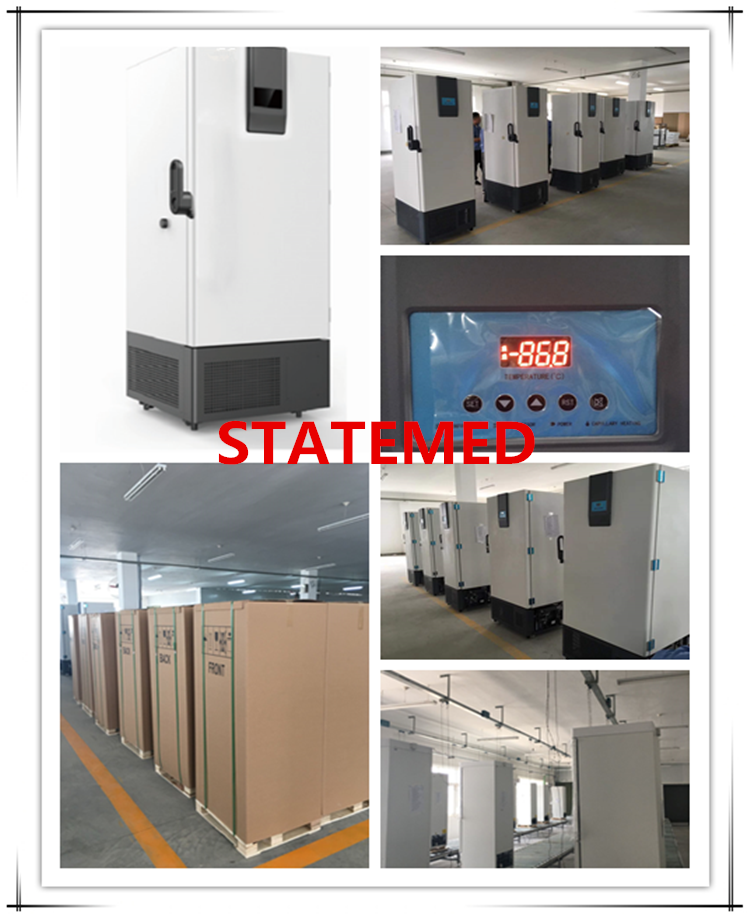

Vertical 360L -40℃～-86℃ Upright ULT Freezer Medical Grade
Refrigerator 44 * 58 * 131 cm
Description:
-86℃ Deep Freezer is specially designed for long term storage of
various biological products, such as germs, virus, erythrocytes,
cutis. It can be installed in situations including blood tanks,
hospitals, epidemic prevention services, reaearch institutes and
laboratories for electronic and chemical plants, biological
engineering institutes and marine fishery companies.
Features of Refrigeration System:
Optimized cascade refrigeration technology, famous brand compressor
to reach a high effcient refrigeration effect;
Single compressor efficient thermal cycle refrigeration technology,
low noise, more energy efficient.
CFC-Free overall polyurethane foaming insulation.
CFC-Free refrigerant.
Temperature Control:
Microprocessor control, large digital display & adjusting inner
temperature,ambient temperature, running status and alarm
informaiton clearly.
The inner temperature can be adjustable at the range of -40℃~-80℃.
Safety Control:
Malfunction alarms: high temperature alarm, low temperature alarm,
sensor failure, over temperature alarm system, set the alarm
temperature as requirements.
Three alarming methods: buzzer alarming, digital flashing alarming
and remote alarm.
Protection function: power-on delay, time between stops.
Chart temperature recorder monitor system (optional).
Ergonomic Design:
Design of computer-user interface based on larege digital display,
Safety door lock, preventing unauthorized access.
Wide voltage design from 187v-242v.
USB export interface for event and temperature data.
Pressure-balanced port design, easy to open the door.
Heavy type caster and locking adjustable screw, easy to move and
fix.
Technical Parameters:
| Model | STT20-UUF95 | STT20-UUF96 | STT20-UUF97 | STT20-UUF98 | STT20-UUF99 |
| Technical Data | Cabinet Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Climate Class | N | N | N | N | N |
| Cooling Type | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling |
| Defrost Mode | Manual | Manual | Manual | Manual | Manual |
| Refrigerant | CFC-Free, Mixing | CFC-Free, Mixing | CFC-Free, Mixing | CFC-Free, Mixing | CFC-Free, Mixing |
| Performance | Cooling performance(℃) | -80 |
| Temperature Range(℃) | -40～-86 |
| Material | Exterior Material | Galvanized steel powder coating |
| Interior Material | Galvanized steel powder coating |
| Insulation Material | PUF+VIP |
| Dimensions | Capacity(L) | 280L | 360L | 480L | 590L | 840L |
| Interior Dimensions(W*D*H) | 440x450x1310mm | 440x580x1310mm | 600x580x1310 | 740x580x1310 | 880x730x1310 |
| Exterior Dimensions(W*D*H) | 620x650X1920mm | 620x780X1920mm | 780x780X1920mm | 920x780X1920mm | 1060x952X1970mm |
| Thickness of Cabinet Foamed Layer | Four walls and top with 90mm, bottom with 130mm |
| Thickness of Door | 90mm | 90mm | 90mm | 90mm | 90mm |
| Capacity for 2 inch boxes | 180 | 240 | 320 | 400 | 600 |
| Inner door | 2 | 2 | 2 | 2 | 2 |
| Power Supply(V/Hz) | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz | 220V/50Hz/60Hz |
| Controller Functions | Display | Large digital display & adjusting keys |
| High/Low Temperature | Y | Y | Y | Y | Y |
| Hot Condenser | Y | Y | Y | Y | Y |
| Power Failure | Y | Y | Y | Y | Y |
| Sensor Error | Y | Y | Y | Y | Y |
| Low Battery | Y | Y | Y | Y | Y |
| High Ambient Temp | Y | Y | Y | Y | Y |
| Door Ajar | Y | Y | Y | Y | Y |
| Alarm mode | Sound and light alarm, remote alarm terminal |
| Accessories | Caster | Y | Y | Y | Y | Y |
| Test Hole | Y | Y | Y | Y | Y |
| Shelves(stainless steel) | 3 | 3 | 3 | 3 | 3 |
| Chart Temperature Recorder | Optional | Optional | Optional | Optional | Optional |
| Door locking device | Y | Y | Y | Y | Y |
| Handle | Y | Y | Y | Y | Y |
| Pressure balance hole | Y | Y | Y | Y | Y |
| USB Interface | Y | Y | Y | Y | Y |
| Racks & Boxes | Optional | Optional | Optional | Optional | Optional |
Safe & Strong Packing:
