New Arrive Ultrasound for Pregnancy and Fetus Liver Kidney & Good
Quality Trolly Ultrasound

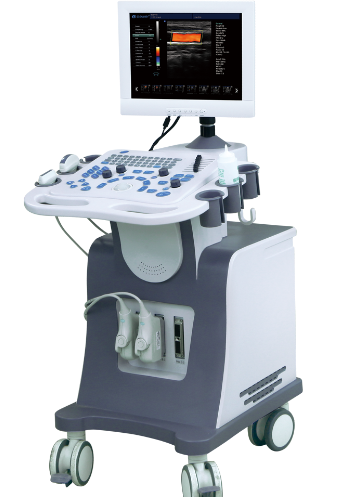

STT6-TCD83 color doppler ultrasonic diagnostic system gathers
digital color doppler imaging technology, speckle reduction
technology, multi-beam parallel imaging technology, and effective
file management system, versatile professional software. Deluxe
appearance with ergonomic touch screen, DW-C80 brings unexpected
scanning experience for doctors.
Application
Abdomen / Obstetrics / Gynecology /
Urology / Andrology / Small Parts / Vascular /
Pediatrics / Musculoskeletal
Hardware Specification
LCD Monitor
Size (Diagonal): 15”
Contrast Ratio: 800:1
Resolution: 1024×768 pixels
Brightness: 230 cd/m2
Color Depth: 24bit
Rotate Angle: ± 90°
Grey Levels: 256
Electrical Power
Voltage: 100 V~240 V
Power: DC12.8V 3A
Frequency: 50/60 Hz
Conditions
Operating
Temperature: 5°C~40°C
Humidity: ≤80%
Pressure: 700hPa~1060hPa
Storage
Temperature: -5°C~40°C
Humidity: ≤80%
Pressure: 500hPa~1060hPa
Connectivity/Media/Peripherals
Transducer Ports: 3
USB Ports: 2
Hard Disc: 60GB (SSD)
120G/256GB SSD (Optional)
Footswitch: USB
Ethernet Port: 2(100Mb/1000Mb)
External Display: VGA
HDMI
USB Printer
Digital Laser Printer
Digital B/W Thermal Printer
Cine/Image Memory
Cine Memory: 1200 frame
Cine Review Speed: 1-5
Cine Review Loop
Cine Capture Function
DICOM Connectivity
DICOM3.0 Compliant
Image Storage
Storage Format:
PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format:
PNG, JPEG, BMP, DICOM
USB Flash Drive
Imaging Modes
B, 2B, 4B, M, B/M, B/C, B/D,
B/C/D, B/CFM/D, PDI
Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, CDE, PD, Directional PD, CD
B-Mode
Maps: 17
Focus Count: Max. 4
Gain: 0~255
TGC: 8 Sliders
Dynamic Range: 0~150dB
Depth: Max. 30cm
Acoustic Power: 0 ~ 15
Chroma: 0~7
Grayscale Levels: 256
Frame Rate: Max.1028Hz
Persistence/ Frame Average: Up to 7
Image Optimization: 0~6
Top/Bottom/Left/Right Reverse
Speckle Reduction
Second Harmonics
M-Mode
Maps: 16
Chroma: 16
Sweep Speed: 3
Gain: 0~255
Distance: Point-to-Point
Max Steer Angle: 15°
Diameter Reduction: Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom
Color Mode
Gain: 0~255
Color Maps: 0~6
Doppler Steer Angles: 7 Steps
Wall Filter: 0~3
Spatial Filtering: 0~3
Acoustical Power: 0 ~ 15
Doppler Multi-Frequency: 2MHz~10MHz
Line Density Max: 256 Lines
Persistence/Frame Average: 0~7
Bloodstream Gain: 0~127
Packet Size: 8~15
Baseline/Invert/Color ROI/M-Mode
PW Mode
Gain: 0~255
D Linear Velocity: 0~2
Doppler Steer Angles: 7 Steps
Edge Enhancement: 0~7
Wall Filtering: 0~3
Audio: 0~255
Correction Angle: 80°/-80°
Doppler Multi-Frequency: 2MHz~10MHz
Pulse Repetition Frequency: 2khz~6khz
Chroma: 0~7
Baseline Adjustment: 0~6
Three Synchronizations
Spectrum Inversion
Measurement Specifications
Analysis Packages
Basic
Obstetrics
Gynecology
Urology
Andrology
Peripheral Vascular
Venous
Small Parts
Orthopedic
Basic Measurement
B-mode basic measurement:Distance, Angle, Perimeter and Area
(ellipse or track-based method), Volume, Histogram, Sectional Map
M-mode basic measurement:Heart Rate, Time, Distance, Speed
Obstetrics
All general measurements and calculations
Obstetrical data versions to calculate gestational age:
— Two fixed data revisions: Asia & Europe
— One editable data version: User Custom
— Each version can estimate the gestational age and expected date
of confinement based on measured gestational sac (GS), biparietal
diameter (BPD), crown-rump length (CRL), femur length (FL), humeral
length (HL), abdominal transverse diameter (ATD), vertebral length
(LV), occipitofrontal diameter (OFD), abdominal circumference (AC)
and head circumference (HC)
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve
Gynecology
All general measurements and calculations
Uterus, Ovary, Follicle
Gynecology Report
Urology
All general measurements and calculations
Kidney, Bladder, Residual Urine Volume
Urology Report
Andrology
All general measurements and calculations
Prostate, Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report
Small Parts
All general measurements and calculations
Thyroid, Mammary Gland, Nodule
Small Parts Report
Peripheral Vascular
All general measurements and calculations
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report
Venous
All general measurements and calculations
Right and left extremity measurements
Venous patient report
Orthopedic
All general measurements and calculations
Right and left hip angle measurement
Hip angle patient report
Standard Configurations
3.5Mhz convex probe
Hard Disc: 60GB (SSD)
Transducer Ports: 3
15” LCD Medical Monitor
Clinical report
Option Configurations
Micro-convex probe
Linear probe
Trans-vaginal probe
Trans-rectal probe
Sony video printer
Packing:
