Portable Laptop Black / White Ultrasound Scanner
Full Digital 12 Inch Display Notebook Ultrasound Machine
l 12.1 inch LED shows the images with more flexible ways.
l Supernormal battery life 4-8 hours
l Super thin body designwith full-scale flexible keyboard
l First-class digital imaging technology, more clearer image
l Full-digital beam imaging technology
l Real-time dynamic receiving focus point by point
l Real-time dynamic sound velocity changed
l High-accuracy DSC Digital image formation technology
l Intelligentized 8-segment TGC adjustment
l Progressive SMT components technology to ensure machine reliability
Application to:
abdomen, obstetrics and gynecology, pediatrics, urology,small
organs, musculoskeletal and so on.
Widely used in expert visits, community service visits,120
emergency center,Large-scale medical examination car,Severe
patient, bedside examination of VIP wards etc.
Probes:
| Scanning mode: convex matrix / linear array / micro convex |
| Probe interface: Standard 1, 2 (optional), automatic identification
function, support multiple probe work. |
| Interface:
Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian |

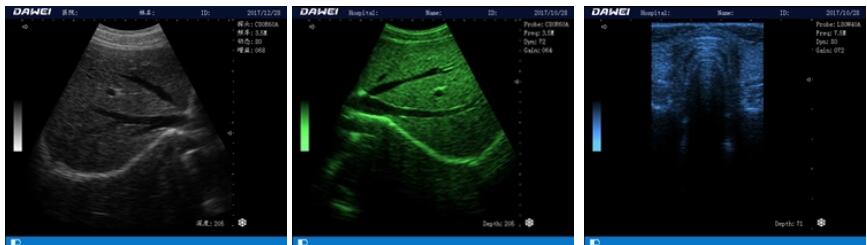

| Display mode: B, B+B, 4B, B+M, M |
| Electron focusing: four segment electron focusing |
| Postural markers: 97 species |
3.5MHz Convex Probe: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz
5.0MHz Micro Convex probe: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
6.5MHz Trans vaginal probe: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
7.5MHz Linear probe & Rectal Probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz |
| Image mirroring: upper and lower mirrors, left and right mirrors,
black and white flip, in any mode can be mirrored conversion,
operation |
| The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270
degrees, and 360 degrees. |
| Measurements: distance, circumference, area, volume, heart rate,
gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected
date of birth, fetal weight display and so on. |
Maximum display depth:3.5MHz:307mm 6.5MHz:189mm
7.5MHz:166mm 5.0MHz:205mm |
| Geometric accuracy: transverse less than 5%, longitudinal less than
5% |
| Resolution: the side is less than 2mm, and the axis is less than
1mm |
| Interface: RS-232 interface, VGA interface, VIDEO interface, USB
interface 2, DICOM |
| Display rate: 6 display modes; lesion diagnosis is more accurate.
When it is above 1.5 and over 1.8, the depth can be enhanced. |
| Starting time is less than 10 seconds |
| Built-in 8800 Ma lithium battery |
| Power indicator light and charging indicator |
Packaging
Aluminum plastic multi-layer package.
Laptop size: 33*29.5*6.5 cm
package size: 47.5*40*21.5 cm
net weight: 4.3kg
gross weight: 8kg
Aluminum plastic multi-layer package:44.5*37*18.5cm, 2.95kg .
The Aluminum plastic multi-layer package is for free, you can
choose it or not.
Shipping
By courier, like DHL, FEDEX, TNT, UPS, ETC. It's door to door.
FAQ
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance T/T,Credit Card,Western Union in advance
,balance before shippment.
If you have another question, pls feel free to contact us.
