    1080P Full HD 3 Chips Drive Rigid / Flexible Endoscopy Camera With Good Imaging Capacity

    Ask Lasest Price
    Brand Name : STATEMED
    Model Number : STT9-CCD13
    Certification : CE, ISO
    Payment Terms : L/C, T/T, Credit card, Western Union, MoneyGram
    Supply Ability : 100 Sets per month
    Delivery Time : 10 working days after payment
    • Product Details
    • Company Profile

    1080P Full HD 3 Chips Drive Rigid / Flexible Endoscopy Camera With Good Imaging Capacity

    1080P Full HD 3 chips Drive Rigid/Flexible Endoscopy camera with good imaging capacity

    Product Description



    Technical parameters:
    Image Sensor3CMOS
    Horizontal Resolution≥ 1100 TV Line
    Output pixels1920(H)×1080(V),60frames
    Scanning modeline by line scan, 16:9
    Min illumination0.2 Lux
    Image freezeone-click freeze one image
    White balanceAutomatic/Manul
    Signal to noise ratio(SNR)60 db
    Video OutputCVBS*11,HD-SDI*1,HDM*1,DVI*1,VGA*1,RS232
    Optical couplerF18/20/22/24/28/32/35 (selectable)
    Remote controltwo control functions
    Camera headWaterproof Camera Head,Soak Disinfectable
    Materialmetal shell
    G.W.6kg
    Size36*36*22 cm
    RecordUSB disk or SD card

    Main Characteristic:

    l Super digital camera system

    l Ultra-high output resolution,1920*1080P 60 frames

    l HD digital chip technology

    l Waterproof camera head, available for soak disinfection

    l Digital output without flicker and signal loss

    l Automatic white balance, image freeze, and remote control

    l With SD card storage,support for camera and video

    l Achieve HD system,visual range increased by 30%

    l Simple and intelligent operation by key

    Standard Configuration

    Host machine

    3 CMOS camera

    Optical coupler: F18/20/22/28/32/35mm

    Power line

    2×BNC video line


    Optical Coupler: default F20


    If necessary you can choose one from F18/20/22/24/28/32/35, or ZOOM 32~35.


    Produce structure

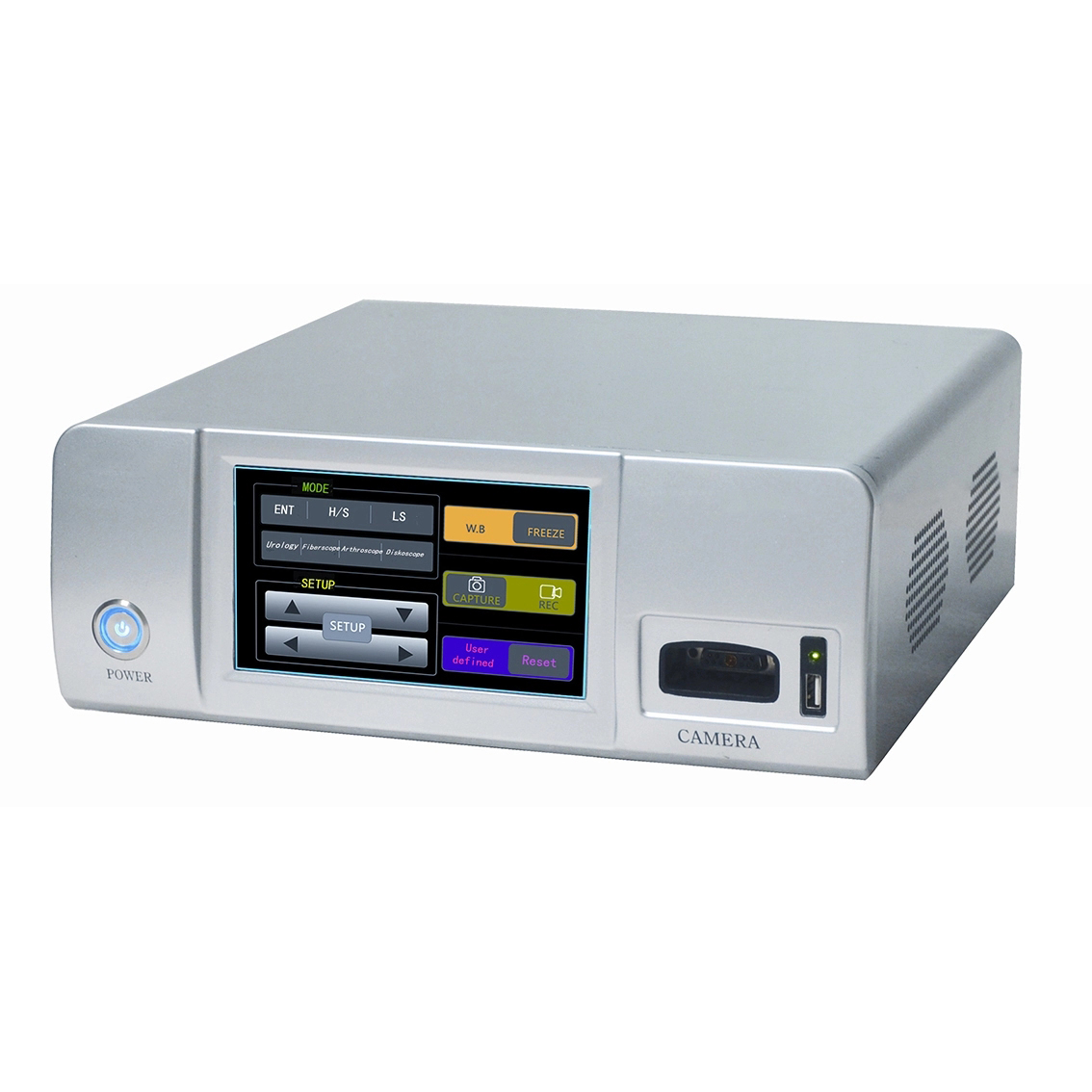

    Mainly made of camera control unit, waterproof camera, and optical coupler.


    Application scope

    Be used in hospital for clinical endoscopic surgery, to amplify video or gain images during inside-body surgery.

    otoscope, nasoscope, laryngoscope, arthroscope, hysteroscope, laparoscope, vapour-resectoscope, etc.


    Working Principle

    This equipment be connected to endoscope through optical coupler, and then accurately shine light at the lesion. The lesionshined by endoscope, and real-time tracing will be recorded then transmitted as video signals by CCD camera to image monitor or monitor or computer workstation for picture processing.


    Imaging
