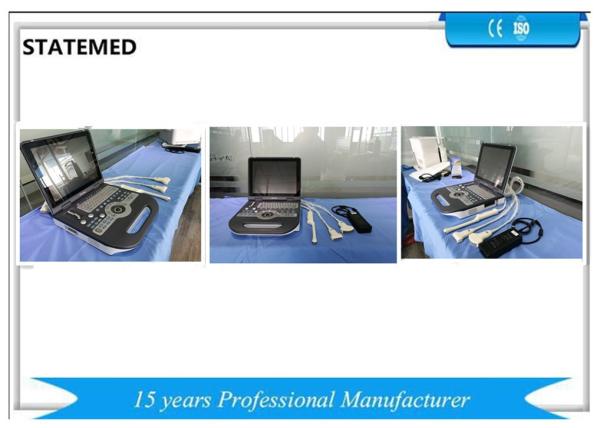

Human Color Doppler Ultrasound Scanner With 80 E / 128 E High Definition Image

The Main Function:
With all-digital beamforming technology.
Scanning methods: convex array, linear array, cavity
Dynamic Range: Dynamic Range: 0 ~ 120dB adjustable, real-time display
Display mode: B, B / B, M, B / M, CFM, CMF / B, PDI, B / PW, a total of eight
Application mode: with abdomen, gynecology, obstetrics, superficial organs, urology, heart, user-defined 1, user-defined 2,
User-defined 3, user-defined a total of 10 kinds of modes
Acoustic output: Acoustic output: real-time display of mechanical index and thermal index
Sound power: sub-file adjustable, real-time display
Grayscale: 256 levels
Display depth: ≥ 250mm
B / D and use: Line: B / PWD; convex array: B / PWD.
Pseudo-color processing: 15 kinds of pseudo color coding optional
Gain adjustment: 8-stage TGC gain adjustment, B / M / D / C independently adjustable, TGC curve automatically displayed and hidden.
Image enlargement: with picture in picture enlargement and partial enlargement function.
Image processing: adjustable scanning angle; image can be black / white reversal, left / right, up / down flip; statistical histogram, edge enhancement,
Gamma correction, frame averaging, line averaging, line density, image brightness and contrast are adjustable.

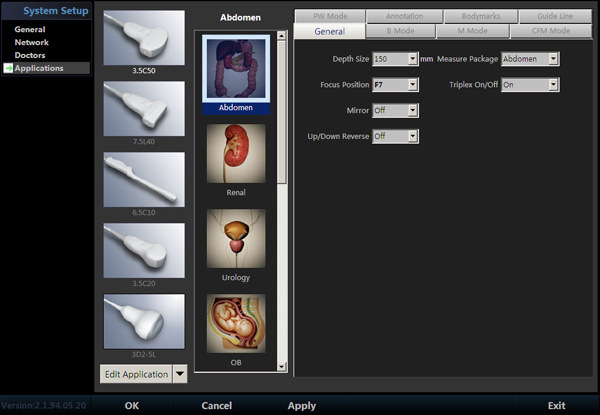

Automatic optimization function: Built-in a variety of inspection types, for different inspection organs, preset the best image inspection conditions,
Reduce the operation of the key adjustment.
A key optimization: preset a variety of parameter adjustment focused on a button, to achieve a key image quickly optimized.
Measurement Software Package: Software package for abdominal, cardiac, obstetric, gynecological and superficial organ measurements. Vector drawing easy to operate,
Can be arbitrarily selected to modify a measurement items, mobile operations, images can be dynamic and static measurements.
Image Management: Support dynamic and static image acquisition, storage, playback and transmission, built-in hard disk capacity ≥ 160GB.
Case Management: Built-in patient information database, patient information can be stored, retrieved and managed.
Report system: automatic report generation system, full-screen Chinese characters and editors.
Output Interface: SR323, USB, DICOM interface.

State (Beijing) Medical Technology Co., Ltd. established in 2002, is a High-tech medical products enterprise combining R&D, production ,sales and after-sale together, specialized in Medical Ultrasonic Instruments, ENT Workstation, Medical Endoscope Imaging Systems, Colposcope, Spectral Instrument for gynecology, Plasma Air Disinfection Machine, X-ray machines and etc. We constantly develop high-quality electric medical devices by adopting the domestic advanced technical facilities to blend the computer information process technology and clinical medicine research perfectly.

With advanced ultrasonic technology, high-standard quality system, strict production process control and efficient after-sales service, our medical ultrasound products has obtained the trust of many medical institutions, such as Colour Doppler ,Digital B/W Ultrasound, Wireless Mini Ultrasound Scanner. Our Colour Doppler is the advanced scientific research achievement of State, which is the reflection that State has been taking customer's demand as design concept and making excellent technology innovation as backup force whether from scalable structure or high-quality images and powerful clinical application. State supply cost-effective and best image colour ultrasounds to global medical communities and make ultrasonic diagnosis enter into a new level. State has got good social and economic benefits because it pays attention to develop new technology and products, train and introduce high-quality talents.

State has first passed the ISO 13485 certificate and the Quality System Certification of ISO9001 as early as 2004 among the same industry in China. The ISO14001 environmental management system certification and ISO 18001 occupational health and safety management system certification has been obtained in 2012. By the end of 2016, three products of our factory have passed the European CE certification. So far, we have 4 computer software copyrights, 2 invention patents, 18 practical and new patents. We always put "quality-oriented, customer the first" as our tenet and stick to the belief "high-standard product, excellent service". We will explore and develop unceasingly and try to make outstanding contributions to human health in the world, which is the common goal of every State people.
