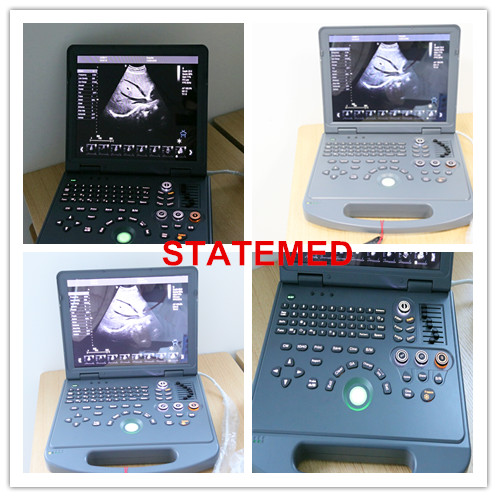

6.3 KG High Definition 4D Color Doppler Ultrasound Scanner With
Trolley Cart
Description:
Based on Windows 7 platform, equipped with SSD (Solid State Disk),
make the storage safer and more reliable, easy for switch machine.
International standardized 18650 Lithium Core, battery
capacity173wh, with more than 3 hours standby time.
Monitor:15 inch LED medicinal monitor
Scanning mode:convex array/linear array/micro-convex array
Probe interface:≥1, single port, probe automatic Identification
Support: convex, linear, trans-vaginal, micro-convex, rectal probes
etc.
Language: Chinese/English
Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, 3D mode,
B/C, B/C/PW, B/PW,B+M,M : 4 scanning speed adjustable
Electronic focus: 4
Body mark: ≥57
Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz,
4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as
per probe)
Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz
Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz
Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5,
6.5, 7.5, 10.0MHz
Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Image processing: up/down,left/right,angle,blood flow reversal.
Magnification: 2-10 times magnification
Automatic freeze function: effective protection of probe life
without any operation
Alternative image storage method: UI storage and image storage
only.
Cine loop speed, visible and adjustable.
Measurement: distance, circumference, area, volume, heart rate,
tube diameter, narrow rate, angle, speed, abdomen, cardiac,
general, musculoskeletal, early obstetric, middle and late
obstetric, pelvic(uterus accessory), small organ, urology,
peripheral, gestational week and EDD, fetal weight, etc, formula
can be converted to edit in obstetric measurement. The distance,
circumference and volume measurement of 3D mode.
Note: date, clock, name, gender, age, doctor, hospital, note (full
screen character editing)
Cine loop≥600 frames, can be viewed continuously or by frame
Storage: in the storage display interface can be sent directly to
the mobile device, image storage path (can be stored directly to
the U disk and other external storage devices), probe parameter
storage, cine loop storage, measurement results storage, report
storage.
Gray Scale: 256
With puncture guide function, puncture line position can be
adjusted
With gravel positioning, dynamic target tracking function.
Dynamic range:0-270dB
Intelligent TGC: 8 segments
Pre-processiong: variable aperture, dynamic apodization, dynamic
digital filtering, multi-beam parallel processing technology, THI
etc.
Post-processing:
Dynamic range 0-270dB,
black and white afterglow 0-7
Smoothing 0-7
Gray curve 1-16
Frame correlation
SHG (Second Harmonic Generation)
Sound power
Wall filter
Cumulative number, baseline adjustment, sampling frame adjustment,
spectrum sampling volume, spectral sampling volume angle, PRF, etc.
Blind zone:≤4mm
Max scanning depth: 320mm；
Geometric accuracy: horizontal≤5%, vertical≤5%
Resolution: lateral≤2mm, axial≤1mm
External interface:VIDEO, USB port , DICOM 3.0
Magnification: 16 kinds; disease diagnosis more accurate
Frame rate:4-1262 fps (adjustable as per requirement)
Scanning range: 5%--100%
Gain control:1-100%,CDFI gain 0～127dB, PW gain 0-15, CFM gain: 0-15
Image optimization: 6 level adjustable
Smoothing: 8 level adjustable
Edge enhancement: 8 level adjustable
PRF: 16 level adjustable(1.82-29.43KHZ)
Gray level curve: 16 level adjustable
Sound power: 15 level adjustable
Minimum measurement speed≤3.1MM/S,Maximum measurement
speed≥4640MM/S
Sampling width:0.5-48mm
Net weight:6.3KG；Gross weight:18KG
Equipment Size:375*350*80mm(Length*Width*Height)
Packing Size: 540*460*325mm

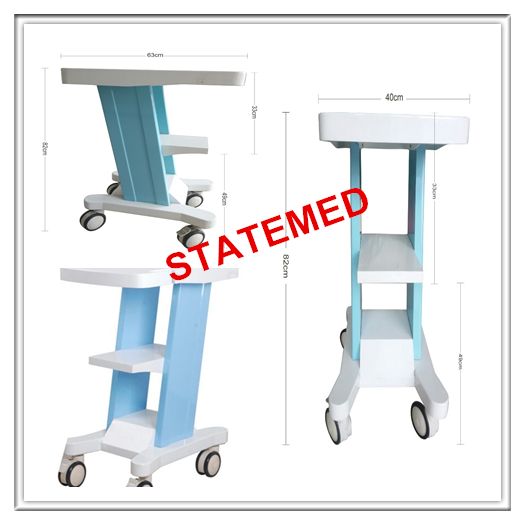

Trolley cart is available.
Professional probes:

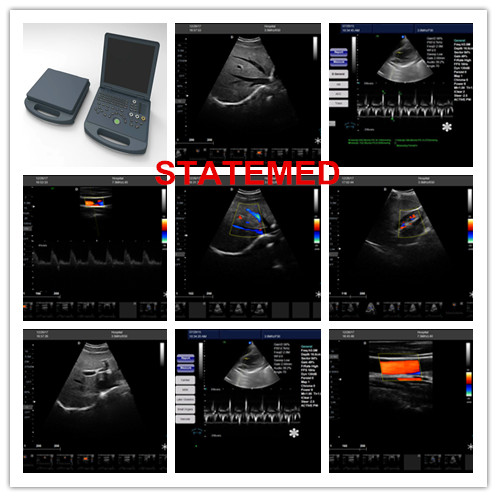

High Definition of ultrasound images:
