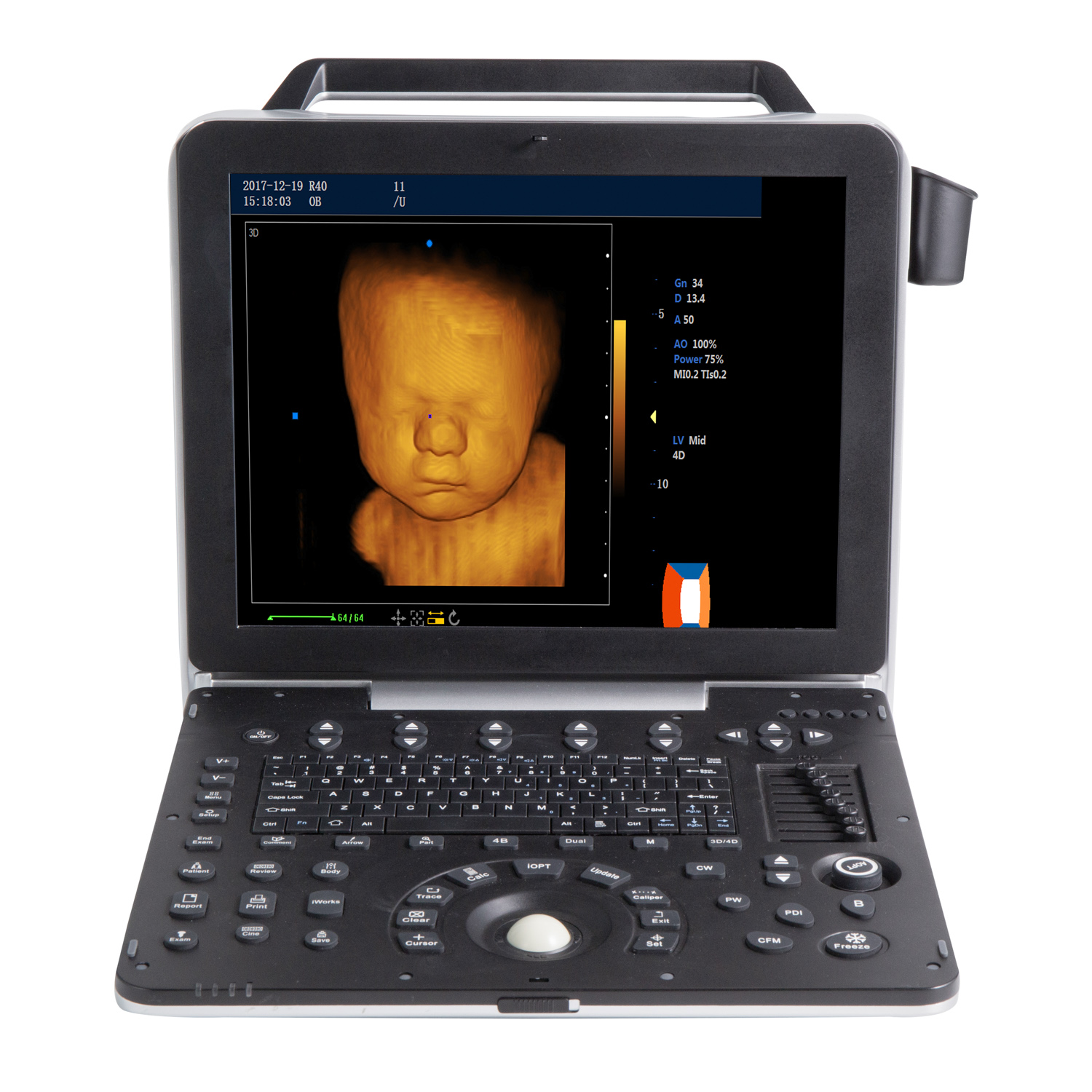

3D 4D Real Time Ultrasound Machine Portable Color Doppler PW CW
Cardiac For Pregnancy
| Multiple probe configuration: |
| 1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic
frequency≥5 ), probe scanning angle 20°～85°, visible and
adjustable. |
| 2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic
frequency ≥4 ), probe scanning with trapezoidal imaging technology
and 2D beam deflection technology |
| 3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency,
harmonic frequency ≥2 ), probe scanning angle 20°～160°, visible and
adjustable. |
| 4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments
multi-frequency. |
| 5 Phased array probe frequency: 2.5-4.0MHz, 3 segments
multi-frequency. |
2D imaging mode
2.1 Gray scale: 256
2.2 Gray Map: ≥16 level, visible and adjustable
2.3 Dynamic range: 20-280db(visible and adjustable)
2.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm
2.5 Under B mode, focus number: 1-6, focus position continuously
adjustable
2.6 STC gain control ≥8 segments
2.7 THI: harmonic frequency ≥2 segments
2.8 Line density: ≥256, visible and adjustable
2.9 Preset: ≥40 kinds, users can customize the inspection
conditions for the optimized images of different organs
2.10 Max scanning depth: ≥31cm, visible and adjustable
2.11 Scanning angle: 50°-100°, visible and adjustable
2.12 Cine loop ≥4800 frames
2.13 Adaptive speckle suppressio: 0-100 adjustable
2.14 Amplification: overall amplification, local amplification,
M-type amplification(do M-type sampling amplification under both
scanning or freeze state)
| Doppler mode: |
| 1With Pulse Wave Doppler (PW) and Continuous Wave Doppler (CW) |
| 2 PW blood flow measurement speed: min speed: ≤0.2 cm/s, max speed:
≥1500cm/s |
| 3 CW blood flow measuremnet speed: min speed: ≤0.6cm /s , max
speed: ≥7000cm/s |
| 4 Sampling volume size: 1mm-20mm, visible and adjustable |
| 5 Sampling angle correction: -80—80 ° |
| 6 Spectral Gain: adjustable |
| 7 PW Doppler frequency: ≥3 kinds, CW Doppler frequency: ≥15 kinds,
visible and adjustable |
| 8 Real-time automatic Doppler envelope mapping and automatic
measurement and analysis |
| 9 Baseline: Zero shift adjustable |
| Color blood flow imaging mode: |
| 1 Color gain: adjustable |
| 2 Color frequency: ≥3 kinds, visible and adjustable |
| 3 Sampling frame: size and position adjustable |
| 4 Color blood flow steer: ≥3 angles adjustable |
| 5 Color map: 1—9 level |
| 6 Color persist: 0—6 level |
| 7 B/C split display: available |
