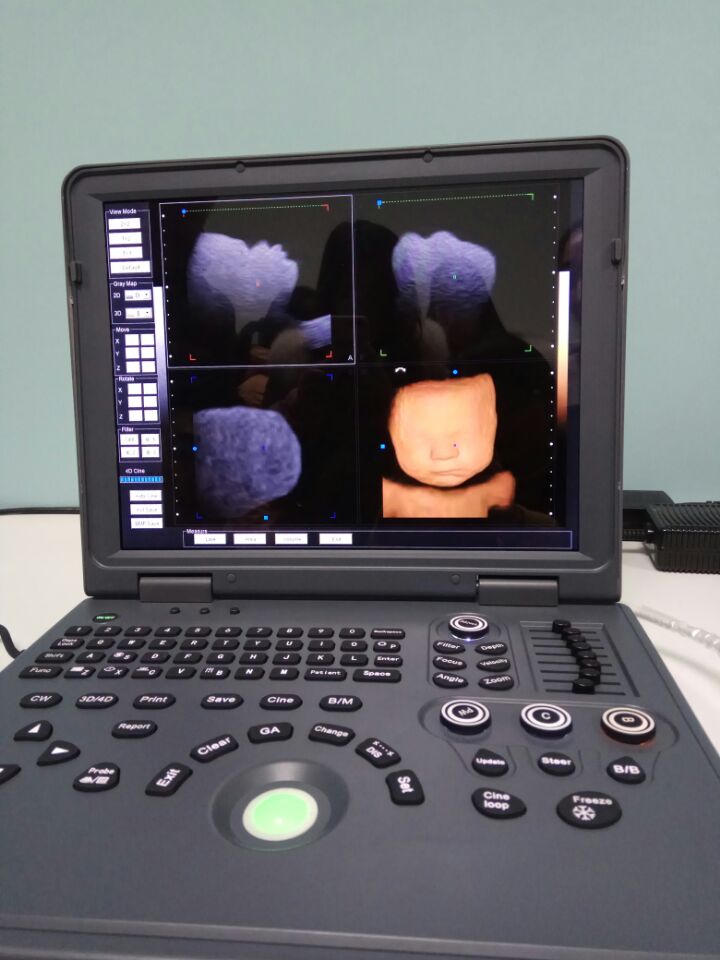

Full Digital Portable Color Doppler Ultrasound Machine With Windows
7 platform Diagnostic For Pregnancy
Product Description
General information
Display: 15’’ LCD high resolution monitor
B&W mode: B, 2B, 4B, M. B/M, B/C, B/D, B/C/D, BC+B
Color Doppler mode: CFM, PDI, PW, HPRF
Duplex: Real-time simultaneous 2D, Doppler
Gray scale: 256
Transducer frequency: 2.5-10Mhz
Dynamic Frequency Scanning (DFS)
Scanning depth: 300mm
Imaging Processing
Pre-processing: 8-segment TGC
Preset
Gain (B&W, Color, Doppler)
Audio
PRF
Dynamic Range
Image enhancement
Acoustic Power
Post-processing: Gray map
Black/white reverse
Left/right reverse
Up/down reverse
Functions
Cine-loop: 1000 frame cine loop memory
Storage media: 64G massive image-storage capacity
Zoom: Pan zoom
USB ports: 2
THI(tissue harmonic imaging): Suppress speckle noise, brighten
image and improve the image quality
iTouch: One key for optimization
iClear Imaging: One key for clearer
Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth,
cruve
M mode: distance, time, velocity, heart rate
Software package: abdomen, gynecology, obstetrics, cardiology,
small parts, urology
Others
Transducer connectors: 1 active transducer connector ports
Peripheral ports: video, S-video, VGA, DIOCM, 2 USB ports
Power supply: 100~240VAC±10%, 50Hz/60Hz
Transducers
3.5Mhz Electronic convex array transducer
7.5Mhz Electronic linear array transducer
5.0Mhz Electronic micro-convex transducer
6.0Mhz Electronic trans-vaginal array transducer
Customer Visit
| 1,Monitor:15 inch LED medicinal monitor |
| 2,Scanning mode:convex array/linear array/micro-convex array |
| 3,Probe interface:≥1, single port, probe automatic Identification
Support: convex, linear, trans-vaginal, micro-convex, rectal probes
etc. |
| 4,Language: Chinese/English |
| 5,Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, 3D
mode, B/C, B/C/PW, B/PW,B+M,M : 4 scanning speed adjustable |
| 6,Electronic focus: 4 |
| 7,Body mark: ≥57 |
| 8,Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz,
4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as
per probe) |
| Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz |
| Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz |
| Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz |
| Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5,
6.5, 7.5, 10.0MHz |
| Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz |
| 9,Image processing: up/down,left/right,angle,blood flow reversal. |
| 10,Magnification: 2-10 times magnification |
If you have anymore questions, don't hesitate to contact us.
