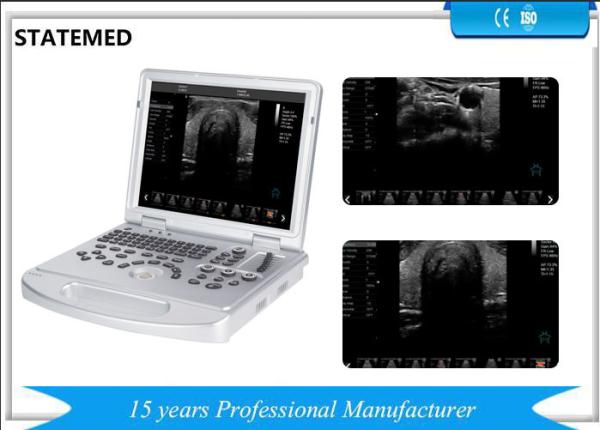

Windows 7 platform 128 Element 15 Inch Display 4D Color Doppler Ultrasound Machine

Descriptions:

Based on Windows 7 platform, equipped with SSD (Solid State Disk), make the storage safer and more reliable, easy for switch machine.

Built-in 18650mAh Lithium battery, enable continuous scanning ≥3 hours, battery capacity: 173Wh.

Technical parameter:

1,Monitor:15 inch LED medicinal monitor

2,Scanning mode:convex array/linear array/micro-convex array/phased array

3,Probe interface:≥1, single interface, probe automatic identification.

Support: convex, linear, trans-vaginal, micro-convex, phased array, 4D volume, rectal probes etc.

4,Language: multi-language support

5,Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, CW mode, real time 3D mode(4D), B/C, B/C/PW, B/PW: 4 scanning speed adjustable

6,Electronic focus: 4

7,Body mark:　≥57

8,Optional Probes:

Convex probe
Trans-vaginal probe
Phased array probe
Linear probe
Micro-convex probe
Micro-convex probe
4D volume probe

9,Image processing: up/down,left/right,angle,blood flow reversal
10,Magnification: 2-10 times magnification
11,Automatic freeze function: effective protection of probe life without any operation
12,Alternative image storage method: UI storage and image storage only
13,Cine loop speed, visible and adjustable
14,Measurement: distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in obstetric measurement. The distance, circumference and volume measurement of 3D mode.
15,Note: date, clock, name, gender, age, doctor, hospital, note (full screen character editing)
16,Cine loop≥1200 frames, can be viewed continuously or by frame (preset 1280 frames, currently only 600 frames, extended after hard disk adjustment)
17,Storage: in the storage display interface can be sent to directly to the mobile device, image storage path (can be stored directly to the U disk and other external storage devices), probe parameter storage, cine loop storage, measurement results storage, report storage.
18,Gray Scale: 256
19,With puncture guide function, puncture line position can be adjusted
20,With gravel positioning, dynamic target tracking function.
21,Dynamic range:0-270dB
22,Intelligent TGC: 8 segments
23,Pre-processiong: variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI etc.
24,Post-processing:
Dynamic range 0-270dB,
black and white afterglow 0-7
Smoothing 0-7
Gray curve 1-16
Frame correlation
SHG (Second Harmonic Generation)
Sound power
Wall filter
Cumulative number, baseline adjustment, sampling frame adjustment, spectrum sampling volume, spectral sampling volume angle, PRF, etc.
25,Blind zone:≤4
26,Max scanning depth: 320mm；
27,Geometric accuracy: horizontal≤5%, vertical≤5%
28,Resolution: lateral≤2mm, axial≤1mm
29,External interface: VIDEO, USB port *4, DICOM 3.0
30,Magnification: 16 kinds; disease diagnosis more accurate
31,Frame rate:5-1016fps (adjustable as per requirement)
32,Scanning range: 5%--100%
33,Gain control:Total gain 0～127dB, PW gain 0-15, CFM gain: 0-15
34,Image optimization: 6 level adjustable
35,Smoothing: 8 level adjustable
36,Edge enhancement: 8 level adjustable
37,PRF: 16 level adjustable (1.82-29.43KHz)
38,Gray level curve: 16 level adjustable
39,Sound power: 15 level adjustable
