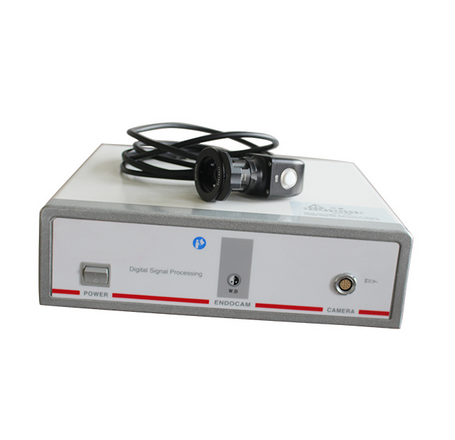

    Medical Waterproof Endoscope CCD Camera 700 Linear Two - Channels Output

    Ask Lasest Price
    Brand Name : STATEMED
    Model Number : STT9-CCD10
    Certification : CE, ISO
    Price : competitive
    Payment Terms : L/C, T/T, Credit card, Western Union
    Supply Ability : 300 Sets per month
    Delivery Time : 10 working days after payment
    • Product Details
    • Company Profile

    Medical Waterproof Endoscope CCD Camera 700 Linear Two - Channels Output


    CE Approved Medical Waterproof Endoscope CCD Camera 700 Linear


    Main Parameters

    ● High definition: 1/3 CCD. The horizontal definition achieves 700 TV lines. (PAL 795H*596V)
    ● Easy operating: DSP adjustment.
    ● Convenience: CCD camera adopts separate model design. The CCD is with waterproof structure.
    ● Two-channels output: Video signal adopts BNC Two-channels for 1.0Vp-p signals.
    ● Convenient power supply: 110-220V×10% input,50-60 Hz
    ● Watt: 25VA.

    Camera
    1/3''D
    Pelx H×V
    795H×598V 410,000
    Horizontal definition
    700TV lines
    Scan system(Either)
    752line/50 field /sec
    Minimum illumination
    0.5 lux XF 2.0
    Synchronization manner
    Inner-synchronization
    Signal-to-Noise
    ≥52dB
    Plus control
    Automatic
    Video output
    1.0Vp-p, 75Ωcomplex signal
    Adapter(Either)
    OES or rigid
    Connection Cable
    2.5m normal. And special length needs order.
    Power
    AC220/110+10% 50Hz-60Hz
    Watt
    25VA
    Deposited temperature
    -20℃~+50℃
    Work temperature
    -10℃~45℃
    Work humidity
    20~85%
    Function
    Camera, white balance, video output, the waterproof grade of camera up to IPX7.

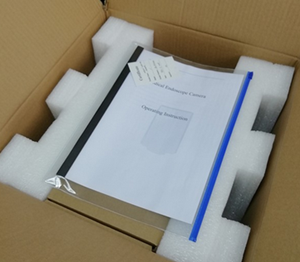

    Packing
    Packing List

    Name
    Quantity
    Mainframe
    1
    camera [PAL]
    1
    Video line

    2
    power cable
    1
    optics coupler
    1
    manual
    1


    Packing by export carton
