1, 15-inch high resolution LED monitor

2, standard PC LED backlit silicon gel keyboard

3, one key regulation, easy operation

4, rechargeable built-in battery

5, abundant peripherals: DICOM3.0, VGA, video out, USB etc

Display Mode:

Black and white image : B, 2B, 4B, left B | M, B | D, PW, M, B partial enlarged mode

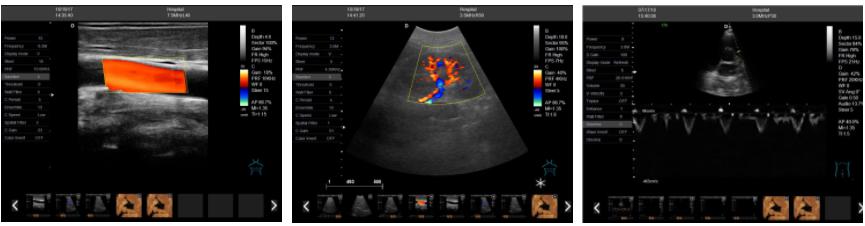

Bloodstream image : Spectrum : B / D, B / C / D CFM: B | C | D, B | C | M, B | C

pairs in real time , PW, CFM, CPA

Color flow image adjustment parameters : a Doppler frequency , sampling frame

position and size , baseline color gain, the deflection angle , the wall filter, the

cumulative frequency.

Display depth:Continuously adjustable

Focus:

Electronic focus + Acoustic lens focus

Launch with a single focus, bifocal , trifocal and four focus work

Receiving continuous dynamic focusing

Signal processing / Doppler sound:

Dynamic Filtering

Quadrature demodulator

The total gain adjustment

Composite Gain Technology: 8-segment TGC and D-AGC

B -, C -, D- , respectively, the total gain is adjustable

Low pass filter

Subsample

Emitter voltage regulation

Doppler tone adjustable stereo output

Image processing:

Logarithmic conversion and dynamic range compression

Temporal filtering

Spatial filtering

Frame correlation

Edge Enhancement

Grayscale conversion

B | M or M -type scanning speed

Line density control

Scan angle / width control

Image optimization

Flip the image around

Image upside down

Flip the image in black and white

Multi-angle image rotation

Choose a color grayscale inversion Article

Tissue blood flow images and image processing complex

Black and white image resolution 1024 × 768 × 8bit (256 gray levels )

Color Image Resolution 1024 × 768 8bit × 8bit × 8bit color coding

Specialist image selection ( optional ):

Select the abdomen : liver, gall bladder , spleen , kidney, pancreas subjects

The basic measurement and calculation functions:

B -mode basic measurements: distance, angle, perimeter and area ( ellipse method ,

track method ) , volume histograms , cross section

M -mode basic measurements: heart rate, time , distance, speed

Obstetric measurement and calculation functions:

Obstetric report

Measurement of amniotic fluid index calculation (AFI)

Calculated ratio (BPD / OFD, FL / AC, FL / BPD, HC / AC)

Estimation of fetal weight

By the LMP, BBT projections gestational age and expected date function

Fetal physiology score (Fetal Biophysical Score)

Fetal growth curve

Application to: Abdomen, regular women and obstetric measurement, urinary system, superficial tissue, cardiac function, peripheral blood vessels and so on.

If some doctor have the other request, for example:CW Function, please follow the below informatioins:
