Portable veterinary ultrasound equipment cow / horse / goat / pig
pregnancy ultrasound scanner echograph machine
1. Technical Parameters
Scanning mode: Electron convex array scanning,
Electron linear array scanning
Electron convex array
Five display format: B, B+B, 4B, B+M, M
Image magnification: ×1.0, ×1.2, ×1.3, ×1.5, ×1.6, ×1.8, ×2.0
L-zoom: real-time partial amplification
Depth of detection: ≥180mm
Image grey scale: 256 levels; 4-stageγcorrection
Frame: 3-stage frame function
Focus: Dynamic digital electronic focus point by point
Gain control: Full gain and 8-segment TGC
Probe Conversion: probe automatic identification
Frequency for Convex : 2.0MHz, 2.5 MHz, 3.0 MHz, 3.5 MHz, 4.0 MHz,
4.5 MHz, 5.0 MHz

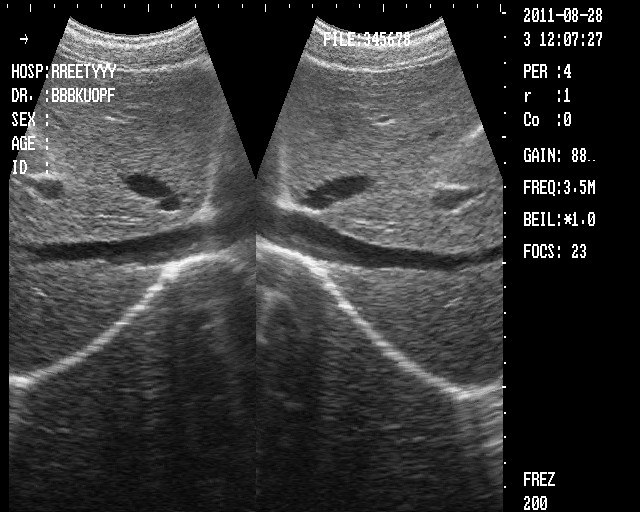

Image:
2. Main Technical Features
2. 2. 1 performance of standard probe
2. 2. 1. 1 R=60 the center frequency of convex array probe: 3.5Mhz
2. 2. 1. 2 investigation depth: >=180mm
2. 2. 1. 3 Vertical resolution:<=1mm(depth<=130mm)
<=2mm(130mm<depth<=170mm)
2. 2. 1. 4 Lateral resolution:<=2mm(depth<=130mm)
<=3mm(130mm<depth<=160mm)
2. 2. 1. 5 Geometric position accuracy: Portrait<=5%; cross
wise<=10%;
Dead zone: <=4mm
Slice thickness : <=5mm
Pupil deviation:<=+-20%
M mode display error: <=5%
| performance | Probe style and standard frequency |
| Standard frequency of probe | 3.5 MHz | 6.5MHz |
| Random error of frequency | Deviation of Sound frequency and standard frequency should ≤±15% |
| Probe | linear, R≥60mmconvex | linear(linear), R≥60mm convex | R＜60mm convex
|
| Investigation depth,mm | ≥180 | ≥70 | ≥60 |
| Axial resolution,mm | ≤2 (depth≤80) ≤3 (80＜depth≤130) | ≤1 (depth≤50) | ≤1 (depth≤40) |
| Lateral resolution,mm | ≤3 (depth≤80) ≤4 (80＜depth≤130) | ≤2 (depth≤40) | ≤2 (depth≤30) |
| Geometric position accuracy,% | crosswise≤10 Length wises≤5 | crosswise≤5 Length wises≤5 | crosswise≤10 Length wises≤5 |
| Dead zone,mm | ≤4 | ≤3 | ≤4 |
| Slice thickness,mm | ≤9 | ≤5 | ≤5 |
| Pupil error,% | ≤±20 | ≤±20 | ≤±20 |
| M mode time error,% | ≤5 | -- | -- |
| M mode distance error,% | ≤5 | -- | -- |
| | | | |
Certificate:
Most of our products have CE certificate.Some even has FDA
certificate special for America market .Our medical products are
manufactured under these certificates and strict quality control
system to assure our product with superior quality and
satisfaction.
