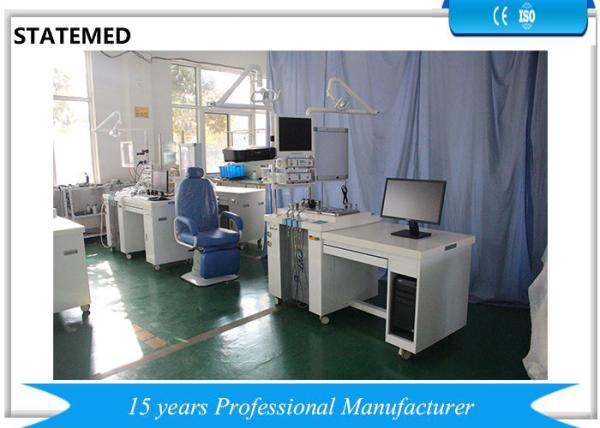

    Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments

    Ask Lasest Price
    Brand Name : STATEMED
    Model Number : STT9-ETU3
    Certification : CE, ISO
    Price : Competitive
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 10 working days after payment received
    • Product Details
    • Company Profile

    Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments

    Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments


    Standard Equipment
    Desk top1pc
    Compressor pump1pc
    Suction vacuum pump1pc
    Main suction apparatus2pcs
    Larynhoscope preheater2pcs(Time is adjustable)
    projection lamp (LED)2pcs
    Computer1pc
    Image processing system software1pc
    Printer1pc
    Cold light source (LED)1pc
    Monitor (LED)1pc
    CCD camera1pc
    X-ray viewer (LED)1pc(optional LED)
    Endoscope3pcs
    Sprayer6pcs(curved 2pcs,straight 4 pcs)
    Suction device2pcs
    Tray2pcs
    Cotton can2pcs
    Liquid medicine bottle6pcs
    Control panel1pc
    Technical Parameter
    Desk topMarble
    Positive pressure2.5kg/cm2 (Optional imported parts)
    Negative pressure740mmHg(max) (Optional imported parts)
    Main suction apparatus2500CC
    Larynhoscope preheater450W(adaptive control system,adjustable time)
    LED projection lamp≥8 W ; illuminate≥1×104
    SprayerPressure: 0.1MPa~0.15MPa (adjustable)
    Suction device≥0.07MPa (adjustable)
    Temperature10℃~35℃
    Voltage220V
    Frequency50/60HZ
    Optional:
    Endoscope
    Endoscope imaging system
    Imaging management system
    ENT operating chair
    Doctor chair
    Cold light source
    Dimension
    1655mm*730mm*885mm

    Regular problems solving chart


    ProblemsProblems causeSolving methods
    1. Indicator light off; The system doesn’t work.Power is cut off

    1. Check the power supply

    2. Check the electrical wire

    3. Check the fuse

    4. According situation to repair or replacement

    2. Power supply works well; positive pressure and negative pressure can’t work.

    1. Pump doesn’t work

    2. Gas is leak

    1. Check the positive pressure, negative pressure and gas pump

    2. Check the pipe

    3. Check the pressure adjuster

    4. According situation to repair or replacement
